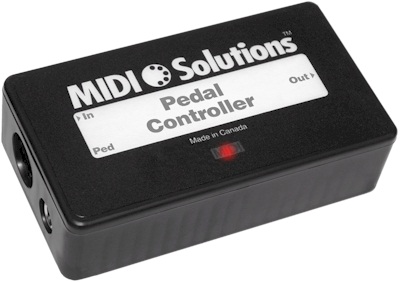

Midi Solutions Pedal Controller
Hersteller: midisolutions
Weitere Informationen:
http://www.midisolutions.com/prodped.htm
190,00 CHF
Produktbeschreibung
an Lager (25.9.2024)
The Pedal Controller accepts an expression pedal (such as the Yamaha FC7 or Roland EV-5 or any potentiometer connected to a 1/4" stereo phone plug) as an input and generates continuous MIDI data based on its position. The Pedal Controller may be inserted inline at any point in the MIDI data stream, allowing you to send continuous controller information to any device in your MIDI setup.
The Pedal Controller’s factory default settings are for it to send CC#7 (volume) on MIDI channel 1, so if this is what you need the Pedal Controller to do then no programming is necessary - just insert the Pedal Controller in your setup and it’s ready to use. The Pedal Controller can also be programmed to send other types of MIDI messages, for more info read on...
The Pedal Controller can be programmed to send:
Aftertouch
Pitch Bend
Control Change
System Exclusive
The Pedal Controller has a MIDI Echo parameter that is selectable on/off.
The Pedal Controller accurately tracks the position of the pedal or potentiometer connected to it. Small fluctuations are eliminated when the pedal is in a stationary position and no extraneous messages are sent out. When the pedal is moved slightly, the Pedal Controller will send an update even if its position has only changed by a single value. Many control wheels or knobs only update themselves every two or every four values, resulting in coarser control, and sometimes zipper noise.
Another unique feature of the Pedal Controller is its ability to add a variable amount of curvature to the response of the pedal. This allows you to correct for pedals with nonlinear responses, or to add greater response at one end of the pedal compared to the other.
The Pedal Controller is programmed by sending it MIDI System Exclusive messages (see FAQs - Programming). Once programmed, its settings are retained even after power is removed. The Pedal Controller can be reprogrammed with new settings as often as needed. The Pedal Controller’s factory default settings are for it to send CC #7 (volume) on MIDI channel 1, with the Echo parameter set to ON.
The Pedal Controller is MIDI-powered, and requires no batteries or power supply to operate with most MIDI products (see FAQs - Power and FAQs - LED for more information). A MIDI indicator LED lights up when the product is powered and flashes when MIDI data passes through it.
weight: 4.1 oz.
dimensions: 4-3/16" x 2-3/16" x 1-3/32"
http://www.midisolutions.com/faqs.htm
