SSL Solid State Logic SSL Alpha8
Hersteller: SSL Solid State Logic
Weitere Informationen:
https://solidstatelogic.com/products/alpha8
INFORMATION
The Ultimate Audio Interface Expander
Building on the acclaimed Alpha Link range, Solid State Logic introduce ALPHA 8 - an 8-in/8-out professional-grade analogue to digital, digital to analogue converter, perfect for expanding your audio interface via ADAT and S/PDIF. Alternatively, you can configure ALPHA 8 to address all analogue and digital I/O simultaneously via USB, giving you an 18-in, 18-out audio interface. Featuring class-leading conversion, flexible routing, and impeccable audio performance, ALPHA 8 unlocks the full potential of your setup.
The Compromise Is Over
Using next-generation 32-bit/192 kHz converters, Alpha 8 brings SSL-grade audio performance to your studio. With huge dynamic range, stunningly low THD+N, unmeasurable crosstalk and an exceptionally low noise floor, Alpha 8 delivers line-level heaven for your analogue outboard processing, samplers, synths and drum machines. The compromise is over – capture your sound with the quality it deserves.
Input Dynamic Range: 120 dB / Output Dynamic Range: 123 dB
Input THD+N: -110 dB / Output THD+N –108 dB
Analogue Agility And Digital Dominance
ALPHA 8 is capable of many different AD/DA routing configurations to suit your specific needs, making sure you can get the most out of all the digital and analogue I/O it offers. Whether you need a simple bidirectional Analogue <> ADAT/SPDIF converter, an aggregate 18-in/18-out USB audio interface, or a mixture of the two, ALPHA 8 provides extremely flexible routing options for its analogue and digital I/O.
Flexible routing configurations / 18-in 18-out USB Audio Interface
The Great Connector
The operating level of each analogue input and output can be individually adjusted to +9, +18, +20 or +24 dBu operating levels, ensuring optimal signal integrity and maximising headroom for devices connected to ALPHA 8. Whether it’s 19” rack gear, vintage synthesisers, analogue mixers, 500-series modules, or monitor controllers, ALPHA 8 ensures every connection to your equipment is fully optimised. On the digital side, Word Clock in and out, ADAT, and S/PDIF clocking options ensure ALPHA 8 provides outstanding digital audio handling, guaranteeing jitter-free, rock-solid integration in your studio environment whilst elevating the performance of your creative space.
+9, +18, +20 or +24 dBu Operating Levels / Word Clock
SSL 18 + ALPHA 8
While ALPHA 8 is the ultimate audio interface expander for producers and engineers looking to bring SSL sound and quality to their existing set-up, ALPHA 8 is also the perfect companion to SSL 18. Instantly expand SSL 18’s I/O via ADAT adding 8 channels (1 x ALPHA 8) or 16 channels (2 x ALPHA 8s). Perfect for effortlessly integrating additional analogue outboard processing, analogue mixers and more.
Key Features
The ultimate audio interface expander
Premium, next-generation 32-bit / 192 kHz conversion
Class-leading dynamic range, THD+N and crosstalk audio performance
8 balanced line inputs and outputs
Up to 8 channels of analogue to ADAT and ADAT to analogue conversion
Configurable operating levels for each input and output to best match your external equipment: +24/+20/+18/+9 dBu
DC-coupled outputs are perfect for sending control voltages to synthesisers and modular rig
10 digital inputs and outputs (8 channels of ADAT, 2 channels of S/PDIF)
Up to 2 channels of analogue to S/PDIF and S/PDIF to analogue conversion
Up to 2 channels of S/PDIF to ADAT and ADAT to S/PDIF conversion
S/PDIF available on coaxial or optical connectors
Flexible conversion configuration
The physical outputs can be fed with a mixture of analogue, digital and USB audio signals, providing a great level of flexibility
18-in, 18-out USB audio interface
Use Alpha 8 as an aggregate USB audio interface
Record and playback to all 8 analogue and 10 digital I/O via USB.
High-current front panel headphone confidence check – audition any individual input or output (or stereo pair)
Choose from 3 different settings to optimise for your headphones – Standard, High Impedance, High Sensitivity
Dedicated front panel input and output meters
Wordclock in and out & input termination switch
Clock internally, or from incoming ADAT, S/PDIF or wordclock
Software Included
The SSL Production Pack includes:
6-months free Complete Access subscription.
3-months free access to Auto-Tune Unlimited subscription.
3-months free access to Arcade by Output subscription.
Perpetual licenses for SSL Vocalstrip 2 and Drumstrip plug-ins.
IK Multimedia Amplitube 5 SE.
Celemony Melodyne Essential.
Native Instruments Hybrid Keys & Komplete Start.
Ableton Live 11 Lite.
AAS Session Bundle plug-ins.
1.5 GB Samples from Loopcloud.
Learn more about the incredible SSL production pack here.

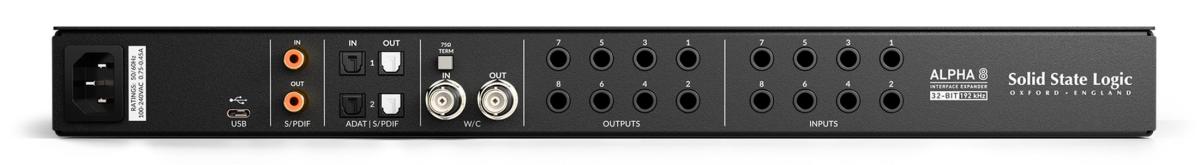

Connectivity
USB 2.0 Type C Connector (Box includes Type C to C and Type C to A)
Line Inputs
8 x Line Inputs
Max input level: 24 dBu
Dynamic Range (A-weighted): 120 dB
THD+N: -110 dB
Crosstalk: -140 dB
*Specs (Measured to AES17 Standards)
Line Outputs
8 x Line Outputs
Max Output Level: +24 dBu
Dynamic Range (A-weighted): 123 dB
THD+N: -108 dB
Crosstalk: -140
Headphone Output
1 x ¼" Ouput
Dynamic Range: 120 dB
Max Output: +18 dBu (High Impedance Mode) / 24 dBu (Balanced Line Output Mode)
Output Impedance: <1 Ω
Digital Inputs
2 x Optical (ADAT) I/O
1 x S/PDIF I/O
Sample rates
44.1, 48, 88.2, 96, 176.4, 192 kHz
Building on the acclaimed Alpha Link range, Solid State Logic introduce ALPHA 8 - an 8-in/8-out professional-grade analogue to digital, digital to analogue converter, perfect for expanding your audio interface via ADAT and S/PDIF. Alternatively, you can configure ALPHA 8 to address all analogue and digital I/O simultaneously via USB, giving you an 18-in, 18-out audio interface. Featuring class-leading conversion, flexible routing, and impeccable audio performance, ALPHA 8 unlocks the full potential of your setup.
The Compromise Is Over
Using next-generation 32-bit/192 kHz converters, Alpha 8 brings SSL-grade audio performance to your studio. With huge dynamic range, stunningly low THD+N, unmeasurable crosstalk and an exceptionally low noise floor, Alpha 8 delivers line-level heaven for your analogue outboard processing, samplers, synths and drum machines. The compromise is over – capture your sound with the quality it deserves.
Input Dynamic Range: 120 dB / Output Dynamic Range: 123 dB
Input THD+N: -110 dB / Output THD+N –108 dB
Analogue Agility And Digital Dominance
ALPHA 8 is capable of many different AD/DA routing configurations to suit your specific needs, making sure you can get the most out of all the digital and analogue I/O it offers. Whether you need a simple bidirectional Analogue <> ADAT/SPDIF converter, an aggregate 18-in/18-out USB audio interface, or a mixture of the two, ALPHA 8 provides extremely flexible routing options for its analogue and digital I/O.
Flexible routing configurations / 18-in 18-out USB Audio Interface
The Great Connector
The operating level of each analogue input and output can be individually adjusted to +9, +18, +20 or +24 dBu operating levels, ensuring optimal signal integrity and maximising headroom for devices connected to ALPHA 8. Whether it’s 19” rack gear, vintage synthesisers, analogue mixers, 500-series modules, or monitor controllers, ALPHA 8 ensures every connection to your equipment is fully optimised. On the digital side, Word Clock in and out, ADAT, and S/PDIF clocking options ensure ALPHA 8 provides outstanding digital audio handling, guaranteeing jitter-free, rock-solid integration in your studio environment whilst elevating the performance of your creative space.
+9, +18, +20 or +24 dBu Operating Levels / Word Clock
SSL 18 + ALPHA 8
While ALPHA 8 is the ultimate audio interface expander for producers and engineers looking to bring SSL sound and quality to their existing set-up, ALPHA 8 is also the perfect companion to SSL 18. Instantly expand SSL 18’s I/O via ADAT adding 8 channels (1 x ALPHA 8) or 16 channels (2 x ALPHA 8s). Perfect for effortlessly integrating additional analogue outboard processing, analogue mixers and more.
Key Features
The ultimate audio interface expander
Premium, next-generation 32-bit / 192 kHz conversion
Class-leading dynamic range, THD+N and crosstalk audio performance
8 balanced line inputs and outputs
Up to 8 channels of analogue to ADAT and ADAT to analogue conversion
Configurable operating levels for each input and output to best match your external equipment: +24/+20/+18/+9 dBu
DC-coupled outputs are perfect for sending control voltages to synthesisers and modular rig
10 digital inputs and outputs (8 channels of ADAT, 2 channels of S/PDIF)
Up to 2 channels of analogue to S/PDIF and S/PDIF to analogue conversion
Up to 2 channels of S/PDIF to ADAT and ADAT to S/PDIF conversion
S/PDIF available on coaxial or optical connectors
Flexible conversion configuration
The physical outputs can be fed with a mixture of analogue, digital and USB audio signals, providing a great level of flexibility
18-in, 18-out USB audio interface
Use Alpha 8 as an aggregate USB audio interface
Record and playback to all 8 analogue and 10 digital I/O via USB.
High-current front panel headphone confidence check – audition any individual input or output (or stereo pair)
Choose from 3 different settings to optimise for your headphones – Standard, High Impedance, High Sensitivity
Dedicated front panel input and output meters
Wordclock in and out & input termination switch
Clock internally, or from incoming ADAT, S/PDIF or wordclock
Software Included
The SSL Production Pack includes:
6-months free Complete Access subscription.
3-months free access to Auto-Tune Unlimited subscription.
3-months free access to Arcade by Output subscription.
Perpetual licenses for SSL Vocalstrip 2 and Drumstrip plug-ins.
IK Multimedia Amplitube 5 SE.
Celemony Melodyne Essential.
Native Instruments Hybrid Keys & Komplete Start.
Ableton Live 11 Lite.
AAS Session Bundle plug-ins.
1.5 GB Samples from Loopcloud.
Learn more about the incredible SSL production pack here.
Connectivity
USB 2.0 Type C Connector (Box includes Type C to C and Type C to A)
Line Inputs
8 x Line Inputs
Max input level: 24 dBu
Dynamic Range (A-weighted): 120 dB
THD+N: -110 dB
Crosstalk: -140 dB
*Specs (Measured to AES17 Standards)
Line Outputs
8 x Line Outputs
Max Output Level: +24 dBu
Dynamic Range (A-weighted): 123 dB
THD+N: -108 dB
Crosstalk: -140
Headphone Output
1 x ¼" Ouput
Dynamic Range: 120 dB
Max Output: +18 dBu (High Impedance Mode) / 24 dBu (Balanced Line Output Mode)
Output Impedance: <1 Ω
Digital Inputs
2 x Optical (ADAT) I/O
1 x S/PDIF I/O
Sample rates
44.1, 48, 88.2, 96, 176.4, 192 kHz
