Zoom U-44

The U-44 is a compact,

4-in/4-out audio interface that enables you to record and perform wherever you are. Small enough to fit in the palm of your hand, the U-44 comes equipped with the features you need to record 24-bit/96 kHz audio anywhere.

The U-44 offers the same high-quality, low-noise mic preamps as our acclaimed H5 and H6 Handy Recorders, plus compatibility with Zoom’s Interchangeable Input Capsules for incredible possibilities. Use the U-44 with your PC, Mac, or iPad via USB—or as a standalone AD/DA converter and mic preamp. No other audio interface provides this much versatility, value, and performance.

The World is Your Studio

Wherever you want to record, the bus-powered U-44 forms the perfect centerpiece of your mobile studio. Connect instruments, monitors, and other devices when you’re recording at home—or hook it up to your iPad* to make music on the go. If bus power isn’t available, the U-44 can run on just two AA batteries, allowing you to record anywhere.

Can your interface do this?

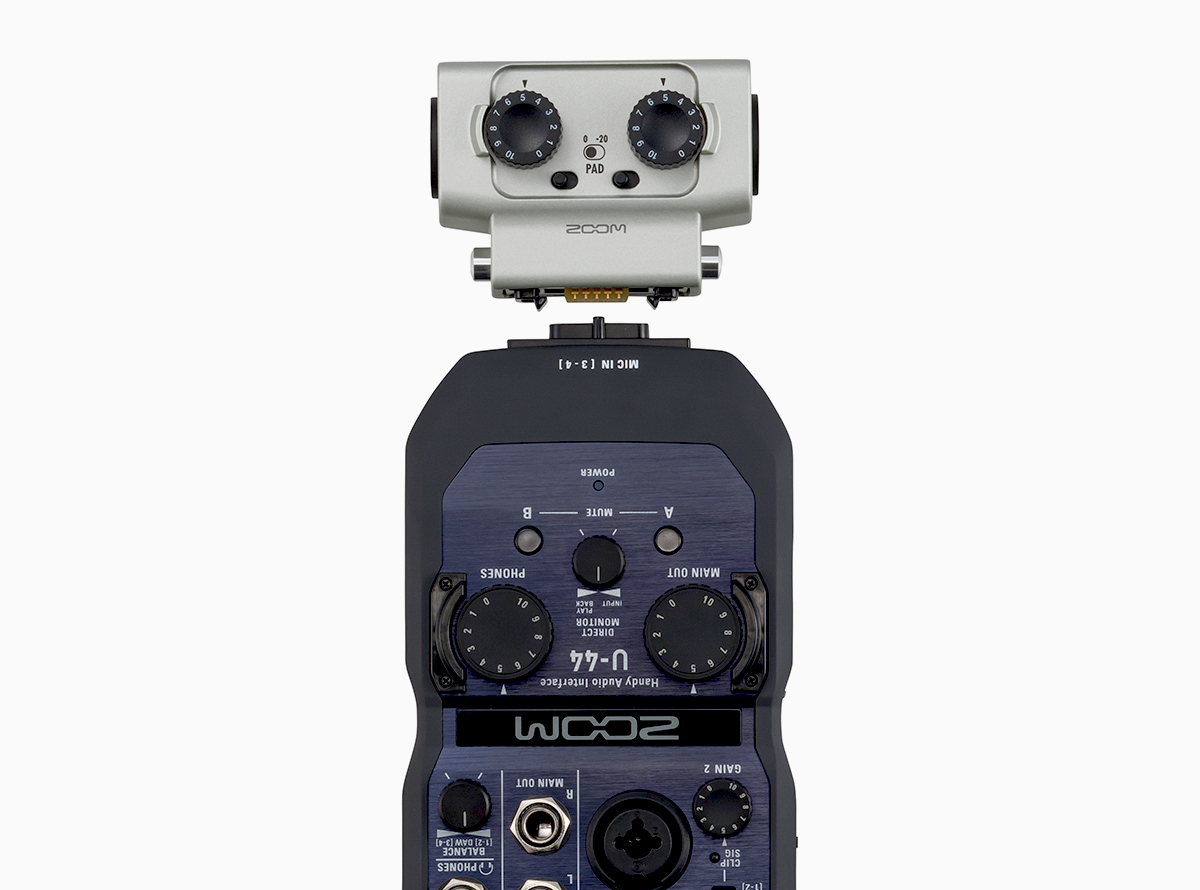

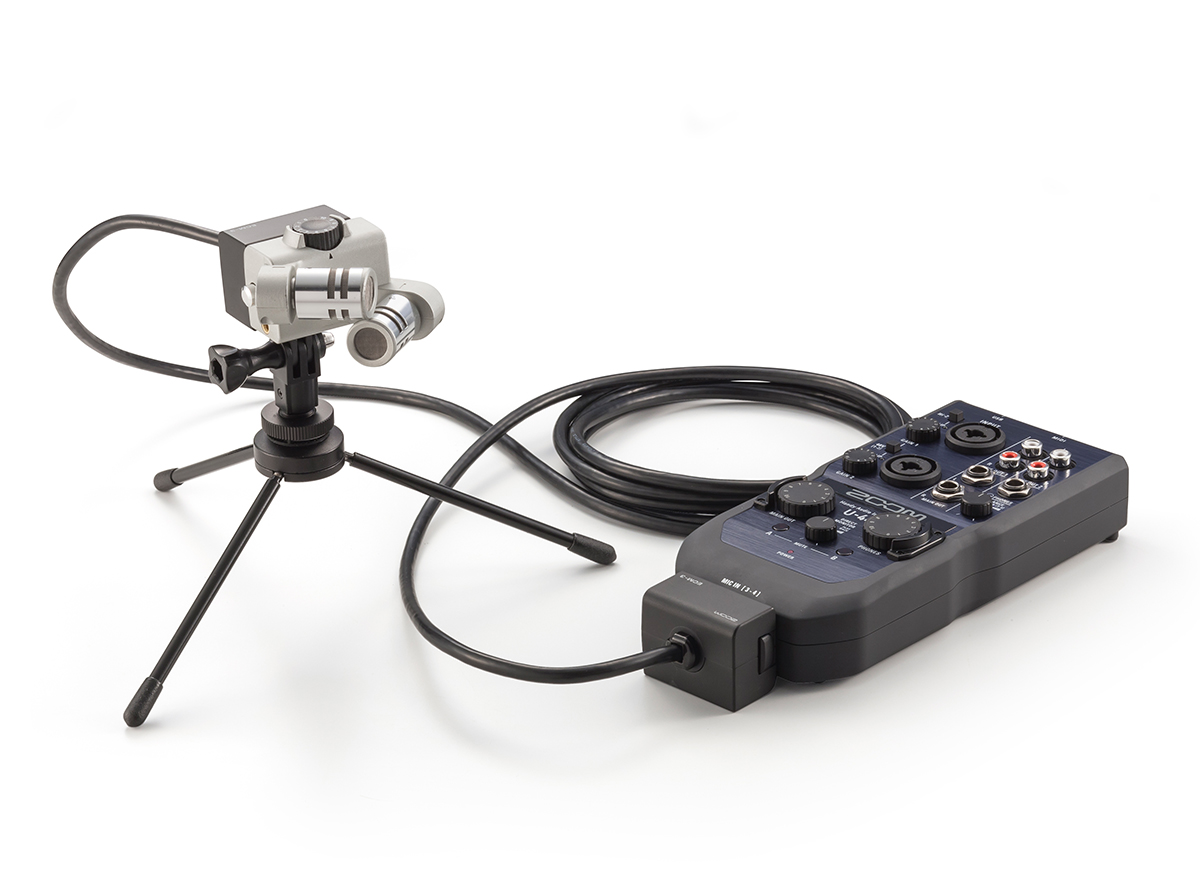

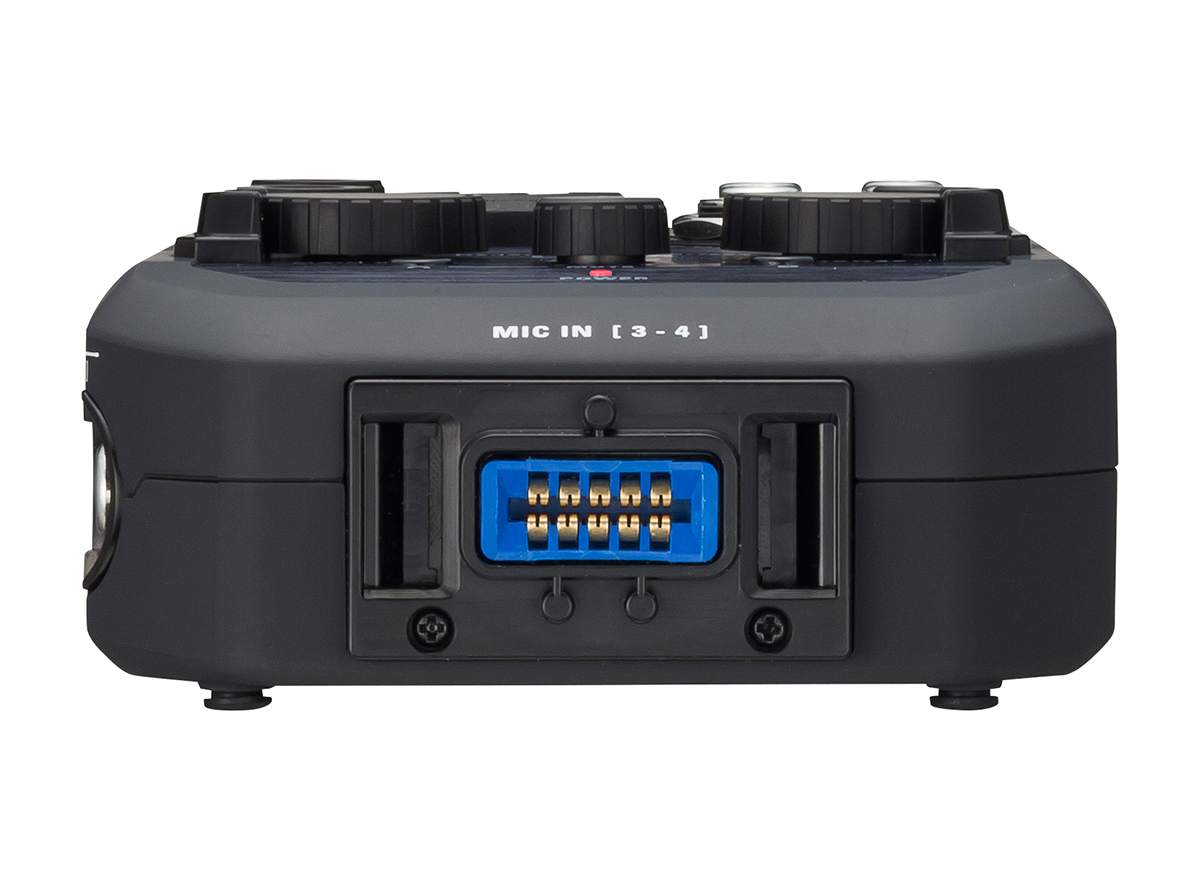

Thanks to its 10-pin Zoom connector, the U-44 is compatible with all of our interchangeable input capsules (sold separately), representing a powerful field recording setup. Choose from six capsules—X/Y, Shock Mount X/Y, Mid-Side, Shotgun, Stereo Shotgun, and Dual XLR/TRS Combo Input—each with its own unique applications. Record the audience during your live performance, or connect our SSH-6 Stereo Shotgun for dialogue and sound design on your latest film project.

Pristine Recording and Playback

Inspired by our Zoom H-series recorders, the U-44 is equipped with high-performance, low-noise mic preamps that enable recording and playback at resolutions up to 24-bit/96 kHz. You can also use U-44 as a studio-quality headphone amp and listen to your favorite music in full fidelity.

It’s All About Connections

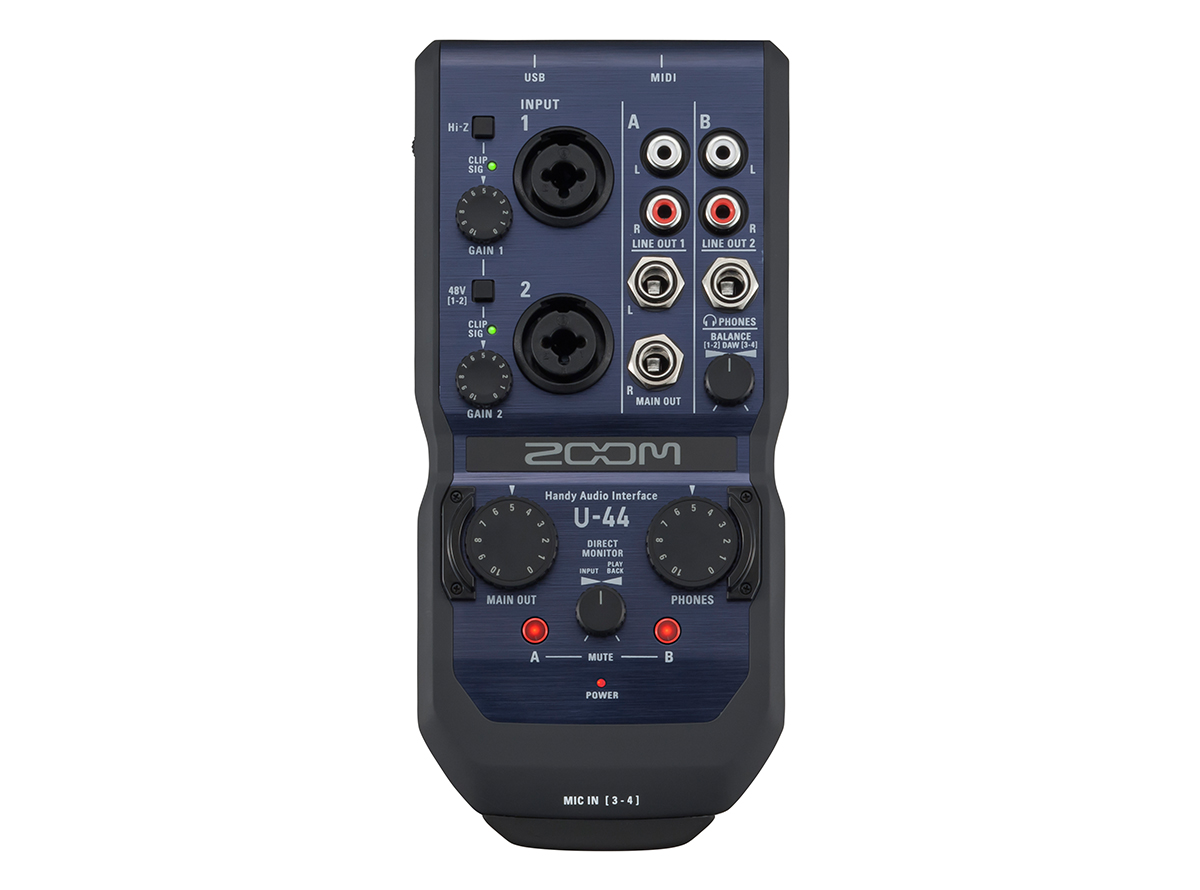

The U-44 features a full array of inputs and outputs so you’ll always be prepared for any recording or live performance. Two combo inputs with independent gain knobs and multi-color level indicators provide flexibility for connecting mics, keyboards, and mixers. 48V phantom power can be supplied to inputs 1 and 2, and input 1 supports Hi-Z input for connecting passive guitars, basses, or other instruments. MIDI I/O jacks enable synchronization with devices like electronic keyboards, controllers, and synthesizer or sampler modules.

Multiple output options—including 1/4”, RCA, and S/PDIF—allow you to connect DJ mixers, speakers, and more. Monitoring your mixes is easy thanks to a dedicated headphone output with independent volume control. The direct monitor knob makes it possible to blend your headphone mix between the input and playback signals—perfect for live electronic music performance and DJ’ing.

Control Your Mix

With advanced monitoring options, the U-44 lets you dial in your ideal mix. Create a balanced headphone mix between your click track and main out signals during live performances. Or balance the cue and main out signals when you’re DJ’ing. The outputs of channels A and B can be muted, providing even more control. Plus, direct monitoring enables you to hear the live signal you’re recording without latency—simply adjust between the input and computer playback signals to create the perfect mix.

Standalone AD/DA Conversion

Transfer audio with total clarity
When you’re transferring audio, high-quality AD/DA conversion is critical. The U-44 functions in standalone mode as a high-quality mic preamp and AD/DA converter to ensure complete transparency when converting audio formats. You can choose between a 44.1 or 48 kHz sampling rate for conversion.

Connect digital audio gear to analog amps and mixers
Create digital samples for your songs
Digitize your analog records and tapes
Transfer archived recordings to digital

Feature-Rich Mobile Recording

The U-44 is small enough to carry in your jacket pocket or backpack—without sacrificing features. Plus, all of the connectors and knobs are strategically positioned for fast access.

Create More with Your U-44

Includes Albeton Live 9 Lite
With the U-44 and Ableton Live 9 Lite, you have everything the modern music creator needs. Record your tracks quickly and intuitively, enhancing them with studio-quality effects like EQ, compression, reverb, delay, chorus, filter, and more.


Features at a Glance

Multi-channel and stereo USB audio interface for PC/Mac
Connect to iPad with Apple iPad Camera Connection Kit or Lightning-to-USB Camera Adapter (sold separately), plus 2 AA batteries or optional AC adapter for power
Two mic/line inputs with high-performance mic preamps
High-quality recording and playback at resolutions up to 24-bit/96 kHz
Compatible with Zoom interchangeable input capsules via 10-pin connector
Standalone AD/DA conversion
Functions as a two-channel mic preamp with analog and digital outputs
Approximately 4 hours of operation with 2 AA alkaline batteries
Includes download code for Ableton Live 9 Lite
Four-channel simultaneous inputs
Hi-Z support (input 1)
Zero-latency direct monitoring
Three TRS phone jack outputs
Dedicated RCA L/R and headphone outputs

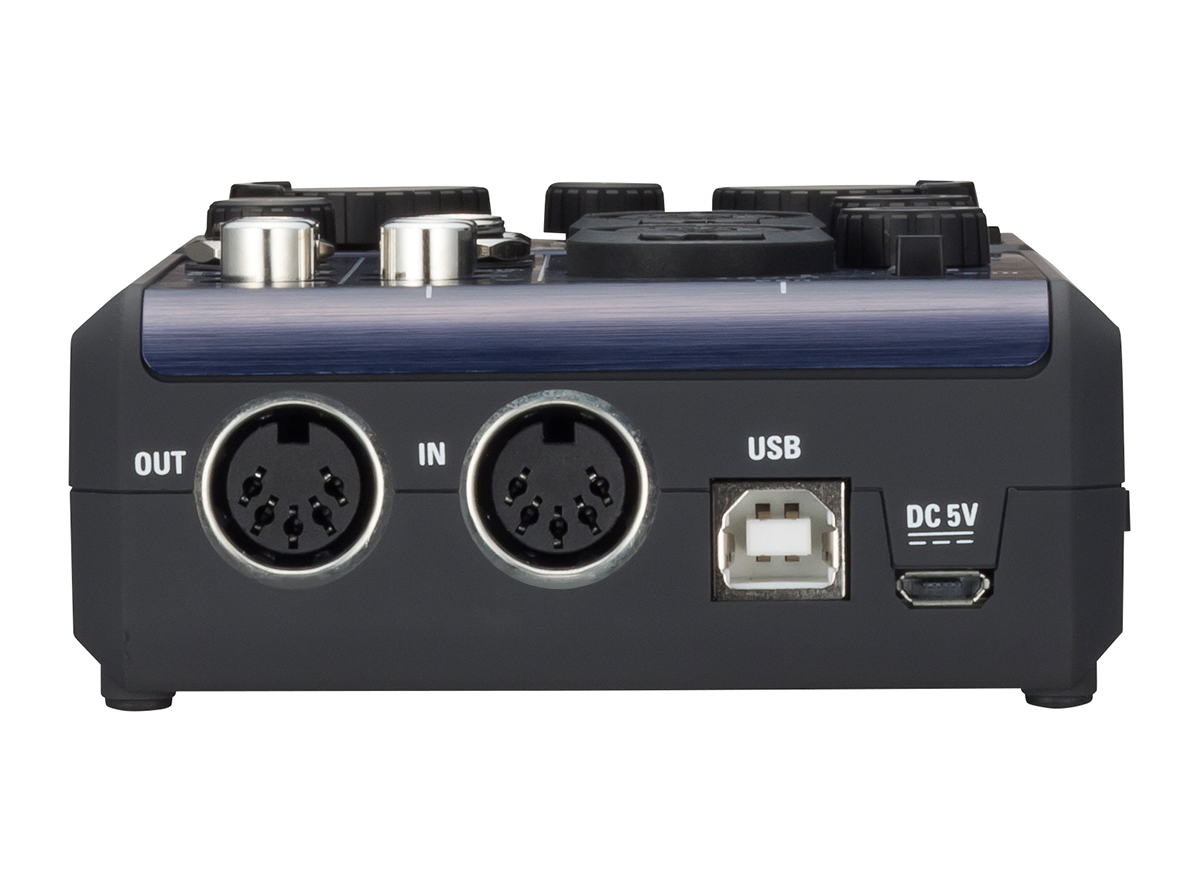

MIDI I/O
S/PDIF optical/coaxial input and output
Gain control knobs for each input
+48V phantom power for inputs 1 and 2
Accepts standard AA alkaline or NiMH rechargeable batteries

Accessories

Here's what's included with the U-44 Handy Audio Recorder...

• Operation manual
• Ableton Live 9 Lite software download code
• USB Cable

Optional U-44 accessories

XYH-6 X/Y mic capsule
XYH-5 X/Y Shock-mounted mic capsule
MSH-6 Mid-Side mic capsule
SGH-6 Shotgun mic capsule
SSH-6 Stereo Shotgun mic capsule
EXH-6 Dual XLR/TRS combo input capsule
ECM-3 Extension Cable for Zoom interchangeable input capsules
Zoom AD-17 power supply

Specs

ANALOG IN: Input 1/2


Connector: TRS/XLR combo jacks (XLR: 2 hot, TRS: TIP hot)

Input gain: 0 – 43 dB

Input impedance: 2.6 k Ω (MIC IN) 1.1 M Ω (when Hi-Z ON)

Maximum input level: +2.7 dBu (MIC IN) /+20.7 dBu (TRS IN)

Phantom power: +48V

ANALOG IN: Mic In

Supported Zoom Input Capsules: XYH-6, MSH-6, SGH-6, EXH-6, SSH-6, XYH-5

ANALOG OUT: Main Out L/R


Connector:

TRS phone jacks (unbalanced)
Maximum output level: +10 dBu (at 0 dBFS)

Output impedance: 330 Ω

ANALOG OUT: Line Out 1/2
Connector: RCA (coaxial)

Maximum output level: +8 dBu (at 0 dBFS)

Output impedance: 1kΩ

ANALOG OUT: Phones


Connector: Standard stereo phone jack: 30 mW x 2 (into 32 Ω load)

Maximum output level: +10 dBu (at 0 dBFS)

Output impedance: 33 Ω

DIGITAL IN/OUT: S/PDIF Optical

Connector: TOSLINK

Supported sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

DIGITAL IN/OUT: S/PDIF Coaxial

Connector: RCA (coaxial)


Supported sampling frequencies:

96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz


Frequency characteristics:

At 44.1 kHz: ±1.5 dB: 20 Hz - 20 kHz
At 96 kHz: ±2 dB: 20 Hz - 40 kHz

Input conversion noise: Measured EIN: -121119.5 dB (IHF-A) at 43 dB, 150 Ω input


Number of audio recording and playback channels:

Recording: 4 channels
Playback: 4 channels


Sampling frequencies: 96 kHz, 88.2 kHz, 48 kHz, 44.1 kHz

Bit depth: 24-bit

Interface: USB 2.0

MIDI IN/OUT: 5-pin DIN jack

Power Source:

USB bus power (Type B)
ZOOM AD-17 (Micro-B)
DC 5V power supply (Micro-B)
2 AA batteries (4 hours continuous operation with phantom power off)

Power consumption: 5W maximum
Dimensions: 198.8 mm (D) x 92.3 mm (W) x 42.7 mm (H)
Weight (main unit only): 310 g
