Apogee Symphony I/O Mk II 16X16 Thunderbolt
Hersteller: Apogee
Weitere Informationen:
http://www.apogeedigital.com/products/symphony-io
5699,00 CHF
Produktbeschreibung
Symphony I/O Mk II
is a multi-channel audio interface featuring Apogee’s newest flagship AD/DA conversion, modular I/O (up to 32 inputs and outputs), intuitive touchscreen display and optional world-class microphone preamps. Designed to deliver professional sound quality for audio recording, mixing and mastering, Symphony I/O Mk II is the ultimate music production centerpiece for any modern studio.
The new Symphony I/O Mk II comes with direct connectivity to one of three different platforms – Thunderbolt™, Pro Tools® HD or Waves SoundGrid® network.
Highlights
- Best AD/DA conversion of any Thunderbolt™ audio interface
- Up to 32 channels of modular analog I/O with optional 8 mic preamps
- Best per-channel value of any interface in its category
- Choice of Thunderbolt, Pro Tools® HD (Mac/PC) or Waves SoundGrid® connectivity
- Ultra-low latency performance
- Intuitive touchscreen display and front panel control
- Designed in California, Built in the U.S.A.
Input and Output Flexibility
There is a Symphony I/O Mk II solution for everyone; the home studio, project studio, commercial recording studio and scoring stage. Choose from four base I/O configurations, 2×6, 8×8, 16×16, or 8×8 with 8 mic preamps and easily expand as your studio grows. With two module slots and the capacity for up to 32 inputs and outputs of A/D & D/A conversion per unit, Symphony I/O Mk II offers the best per-channel value of any interface in its category.
Specifications:
Analog to Digital:
THD+N: -114dB @ 22dBu (0.00020%)
Dynamic range: 122dB A weighted
Maximum input levels:
+4dB setting: +24dBu
-10dB setting: +6dBV
Frequency response at 44.1kHz: 1-20,000 Hz (+/- 0.05dB)
Input impedance: 10K
Digital to Analog:
THD+N: -117dB @ 21dBu (0.00014%)
Dynamic Range: 129dB A weighted
Max output levels – ∞ to +24dBu
Frequency response at 44.1 kHz: dc to 20kHz (+/- 0.05dB)
Output impedance: 25 Ohm
Outputs are balanced through Apogee’s proprietary Perfect Symmetry Circuitry (PSC)
Headphone Output:
1 stereo 1/4″ headphone output on front panel
THD+N:
-110dB @19dBu into 600 Ohm (=80mW)
-101dB @14dBu into 32 Ohm (=470mW)
Dynamic Range: 121db A weighted
Output: Apogee’s proprietary Constant Current Drive™ provides smooth frequency response with any headphones
Power:
90-240VAC, 50-60Hz, 150W
Operating System:
Thunderbolt: Mac OS only 10.9.5 and above
HD: Any Mac or PC running Pro Tools HD 9 or greater
Package Contents:
Symphony I/O Mk II Interface
Power Cable
Quick Start Guide
Warranty Booklet
Symphony I/O Mk II Dimensions:
Inches: 17.75 (19 with Rack Ears) x 11.5 x 3.5
Centimeters: 45 (48.26 with Rack Ears) x 29.2 x 8.9
Packaging Dimensions:
Symphony I/O Chassis Box
Inches: 22.875 x 17.75 x 9.25
Centimeters: 58.1 x 45.1 x 23.5
I/O Module Box
Inches: 13.75 x 12.25 x 3.25
Centimeters: 34.9 x 31.1 x 8.3

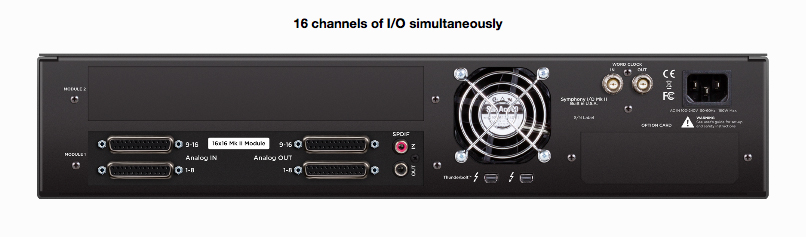

Symphony I/O MKII 16X16 Thunderbolt
INPUTS
Analog IN: 16 balanced inputs on 2 DSUB 25-pin connectors
Coax IN: S/PDIF on 1 RCA connector
OUTPUTS
Analog OUT: 16 balanced outputs on 2 DSUB 25-pin connectors
Coax OUT: Supports SPDIF on 1 RCA connector
Connection:
Thunderbolt cable (Sold separately)
Performance:
44.1kHz – 192kHz
Latency: 1.35 ms with Logic Pro X (96 kHz / 32 buffer)
Computer:
Thunderbolt-enabled Mac computer, including Mac Pro, MacBook Pro, Mac mini, iMac & MacBook Air
Operating System: Mac OS 10.9.5 or greater
Control:
Maestro app (included in software installer) and front panel touchscreen
Compatible Software:
Logic Pro X
Any Core Audio application on Mac
Weitere Informationen: http://www.apogeedigital.com/products/symphony-io
