MotU 8D
Hersteller: MotU
Weitere Informationen:
http://motu.com/products/avb/8d
679,00 CHF
Produktbeschreibung
Introducing the 8D - AES3 / SPDIF / USB / AVB-TSN audio interface with DSP and mixing

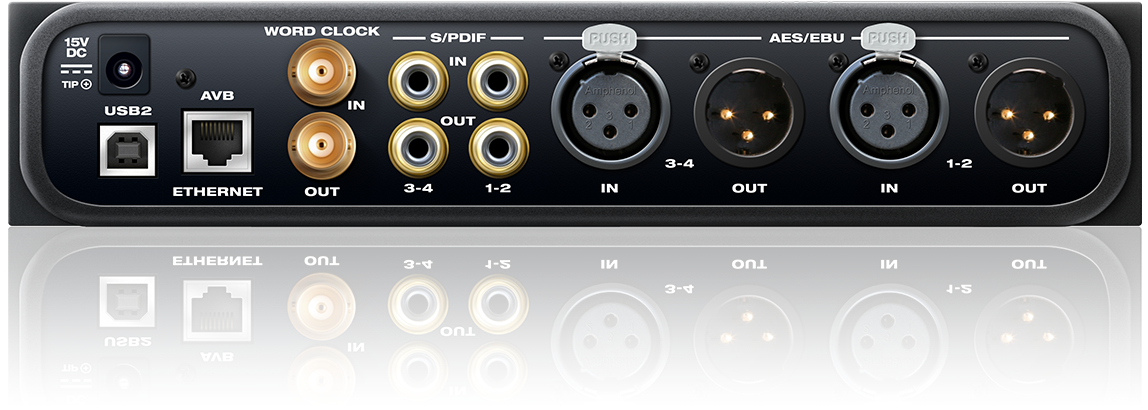

The 8D provides four channels of professional AES3 (AES/EBU) digital I/O, plus four channels of standard S/PDIF digital audio I/O, with sample rate conversion on all inputs.
Professional digital I/O with SRC
The 8D provides universal connectivity to your Mac or PC through USB or AVB/TSN. Renowned drivers deliver industry-leading ultra-low latency and proven, rock solid performance.
High-performance computer connectivity
New, optimized drivers for both Mac and PC deliver ultra-low latency performance. With a high-performance DAW such as Digital Performer, the 8D delivers an astonishing round trip latency (RTL) of 1.70 ms (milliseconds) on OS X and 1.71 ms on Windows over USB (at 96 kHz with a 32-sample host buffer).
A flexible digital converter, router, and splitter
Send any input to any output, or split to multiple output channels. Convert any format to any other (AES3, S/PDIF, AVB-TSN and USB). Includes routing to and from the computer, plus any devices on the AVB-TSN network.
DSP mixing and effects processing
The 8D's 48-input digital mixer delivers 7 stereo aux busses, 3 groups, access to 64 network inputs, and DSP effects, including classic reverb, EQ modeled after British analog console EQs and compression modeled after the legendary LA-2A compressor. If you know your way around a large-format mixing console, you'll feel right at home. With 32-bit floating point processing, the 8D's DSP engine delivers virtually unlimited headroom and the utmost in sound quality.
Stand-alone operation with wireless control
Connect an Apple® Airport™ or other Wi-Fi router with a standard Ethernet cable for wireless control of device settings, powerful 48-channel mixing and DSP effects.
Web app control
The software that you use to control the 8D doesn't reside on your hard drive. It's a web app served from the hardware itself. This means you can control the 8D's on-board DSP, mixing, and device settings from the web app software running in your favorite web browser on the computer, or even a tablet or smartphone on the same Wi-Fi network as your computer.
Word Clock
Standard word clock input and output allows you to resolve the 8D to other digital audio gear or house sync.
Convenient headphone monitoring

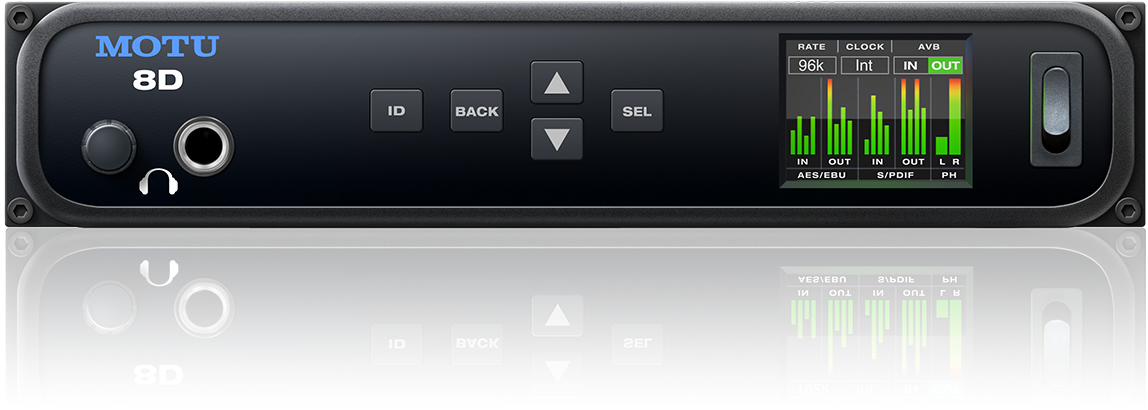

Use the assignable front-panel headphone output with volume control to monitor any stereo channel pair.
Mix and match with other MOTU gear
An included mounting bracket kit joins the 8D side-by-side with any other MOTU half-rack unit to create a single rack-space configuration consisting of customized analog, digital and/or MIDI I/O configuration tailored just for you.
System expansion / networking
Add a 2nd MOTU AVB-equipped interface with a simple CAT-5e ethernet cable.
Connect up to five MOTU interfaces using a MOTU AVB/TSN Switch (sold separately).
Build a network with multiple interfaces and computers using standard AVB/TSN switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
Audio analysis tools
Analyze and scope your audio with advanced diagnostic tools, including a full-screen real-time FFT display, spectrogram "water- fall" display, full-featured oscillioscope, X-Y plot and phase analyzer.
AudioDesk
Includes AudioDesk workstation software for Mac and Windows with 24-bit recording, sample-accurate editing and 32-bit mixing and mastering
Weitere Informationen: http://motu.com/products/avb/8d
