Denon DN-300Z MKII

Combining the best of disc, wireless, and solid-state media playback, the Denon Professional DN-300Z is an all-in-one audio player you can count on when the whole room is listening. Ideal for front-of-house, education, music and rehearsal studios, houses of worship, restaurants and more, it has an answer to every request—all consolidated into a compact 1RU design. Extending Denon Professional’s dedication to powerful solutions that are easy-to-use, the DN-300Z plays the media of both today and tomorrow, in formats easily accessible to any user.

It really does expect the unexpected. Go ahead, throw anything you want at it: Front-loading media slots (CD w/single-play mode, USB, SD/SDHC) deliver intuitive playback of today’s familiar mass-storage mediums. Or, go wireless with long-range Bluetooth audio connectivity (up to 100 feet) and instant recall of up to 8 devices such as smartphones and tablets. With support for CD-DA, MP3, WAV, and AAC file formats, the DN-300Z is the master-of-all-trades player that excels when the unpredictable occurs. The 300Z features both RCA audio outputs and balanced XLR outputs. The balanced outputs are a much-needed feature in the professional/commercial sector, since they enable long connection cable runs without any increase in stray noise pickup.

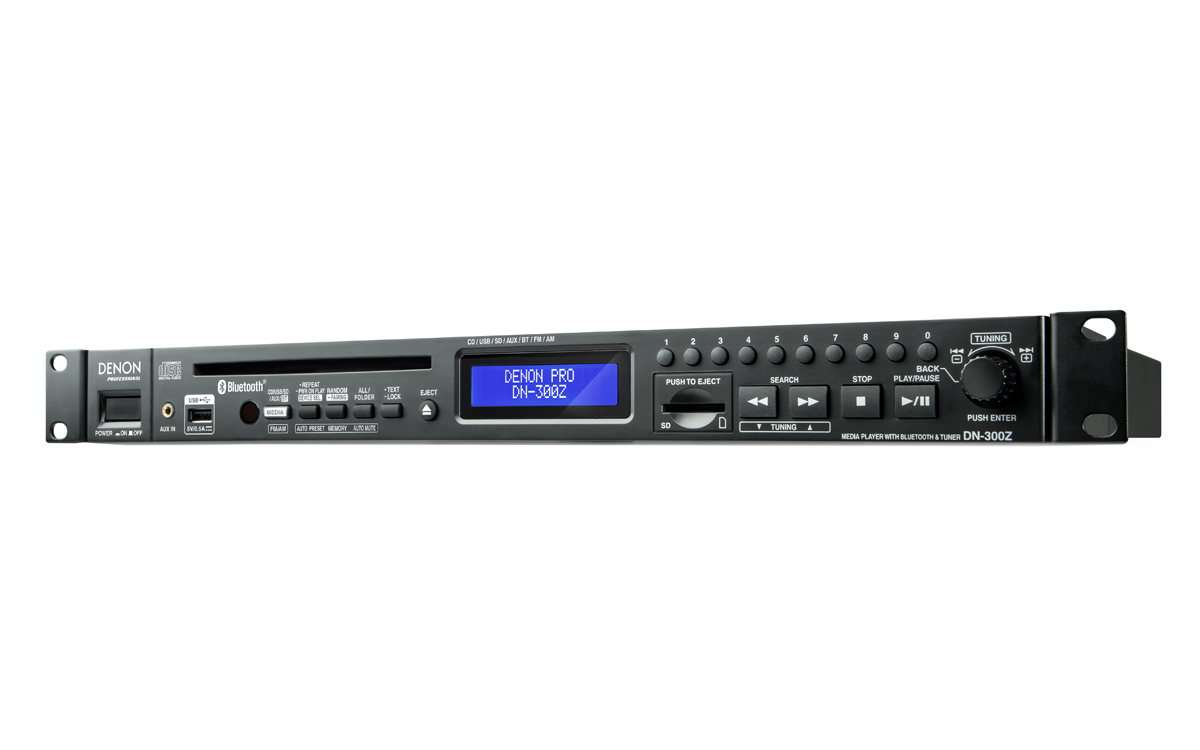

The front panel’s backlit LCD screen provides at-a-glance status of playback modes and content, providing clear readouts to even the most novice user. Designed to adapt to any scenario, switching formats on the fly has never been easier. Media categories and their respective controls are grouped together so users will never have to wrestle with deep menus or use the instruction manual to perform basic functions. Direct access to CD tracks, global transport controls (play/pause/search), and a rotary-push encoder translate to fast, hands-on command when you need to get to your content.

An IEC-weighted AC power port means space-saving connection to power sources—no bulky transformers or “wall warts” required. When installed into a client’s rack, the DN-300Z provides the capability, reliability, and versatility to tackle any playback task, from one-off requests to rehearsed program material, in an intuitive, tidy package.

The DN-300Z media player expects the unexpected. But you demand it.

Features:

Super-fast loading, slot-in CD player
Supports removable USB thumb and HDDs, SD/SDHC cards
Wireless audio playback from tablets and smartphones via Bluetooth
Selectable Power-On-Play mode automatically plays USB, SD or CD tracks when powered up — simply turn it on
Up to 100 foot (30m) wireless Bluetooth range
Plays CD-DA, MP3, WAV, and AAC files
3.5mm (1/8-inch) input for audio playback of any audio device with a 3.5mm output
AM/FM Tuner w/ dedicated audio out for multi-room use

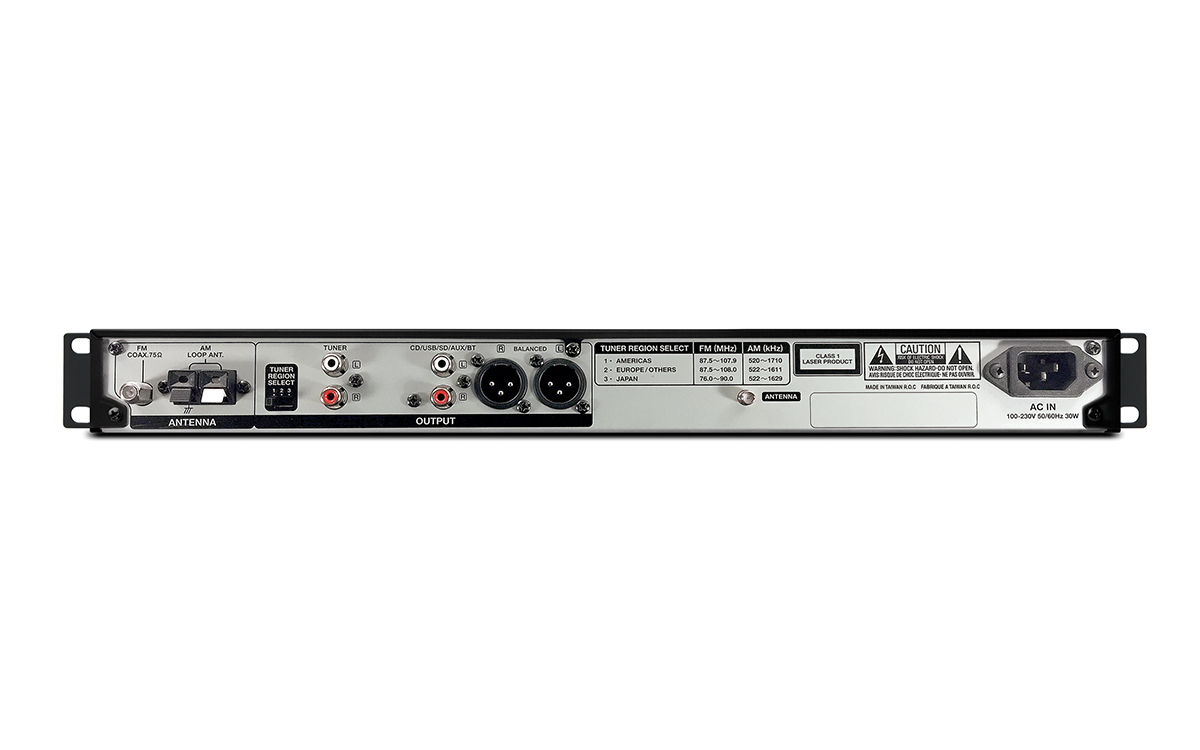

RCA and balanced XLR audio outputs
10-key direct track access
Random, repeat, and single play playback modes
Remembers up to 8 Bluetooth devices for simple switching of wireless audio sources
Folder only and All play modes
Lockable front-panel keeps program material from being interrupted
IR controllable with included, compact remote
1RU chassis with removable rack ears
Detachable IEC-weighted AC inlet
100-220v switching power supply

Specifications:

Playable formats, file systems
CD: CD-DA (CD-TEXT), CD-ROM (ISO9660), CD-R, MP3-CD
USB: FAT16 / FAT32
SD/SDHC: FAT16 / FAT32
Supported WAV format
Extension: WAV
Bitrate: 16–bit
Samplig Frequency: 44.1 kHz

Supported AAC format
Extension: M4A
Compression method: AAC-LA
Bitrate: 32 to 320 kbps and VBR
Sampling Frequency: 44.1 kHz

Supported MP3 format
Extension: MP3
Bitrate: 32 to 320 kbps and VBR
Sampling Frequency: 44.1 kHz

Number of channels: 2 (stereo), 1 (mono)
Audio frequency characteristics: 20 Hz - 20 kHz (± 1.0dB)
S/N ratio: More than 95 dB (A-Weighted)
Total harmonic distortion: Less than 0.01%
Dynamic Range: More than 85 dB
Channel Separation: More than 80 dB

Bluetooth
Version 3.0
Output Class 2
Range: Up to 100 feet (30m) with included antenna
Supported Codec: SBC, MP3, AAC, aptX
Supported Profiles: A2DP, AVDTP 1.0, AVCTP 1.3, AVRCP 1.0, SSP
Device memory: Recall up to 8 pairings instantly

Input
Aux in: TRS (3.5mm)
Input impedance: Over 10 kΩ
Maximum input level: 1 Vrms
Maximum output level: 3 Vrms

Output
Analog RCA terminals
Load impedance: Over 10 kΩ
Output level: 2 Vrms at 10 kΩ load

Balanced XLR
Output Level: +8 dBu
Load impedance: > 10 kΩ

Tuner
Tuner (Americas)
FM receiving range: 87.5 MHz - 107.9 MHz
AM receiving range: 522 kHz - 1710 kHz

Tuner (EU and Asia Pacific)
FM receiving range: 87.5 MHz - 108.0 MHz
AM receiving range: 522 kHz - 1611 kHz

Tuner (Japan)
FM receiving range: 76.0 MHz - 90.0 MHz
AM receiving range: 522 kHz - 1629 kH

Useable Sensitivity (FM): 30 dBuV/m
Useable Sensitivity (AM): 60 dBuV/m
Tuner channel separation: 20 dB (0 kHz)
Tuner S/N ratio (FM): > 40 dB
Tuner S/N ratio (AM): > 30 dB
THD+N (1 kHz): 3.0%

Operating Environment
Operating temperature: 5-35 degrees Celcius (41-95 degrees Fahrenheit)
Operating humidity: 25-85%, no condensation

General
Power Supply
USA & Canada: AC 120V, 60 Hz
EU, UK, APAC: AC 230V, 50/60 Hz
Japan: AC 100V, 50/60 Hz

Power consumption: 30W
Dimensions: 19” x 13.7” x 1.73” (483 x 347 x 44mm) with rack ears
Weight: 7.94 lbs. / 3.6 kg

Others
Max storage capacity: Up to 2TB
Max file size: 2 GB
Max number of files per folder: 999
Max number of folders: 999
Max folder heirarchies: 8
Max file/folder name length: 255 characters

In the Box:

DN-300Z
Power cable

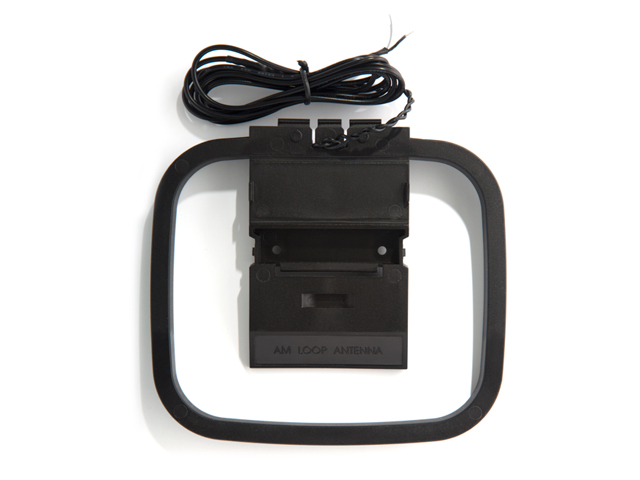

AM loop antenna
FM coaxial antenna

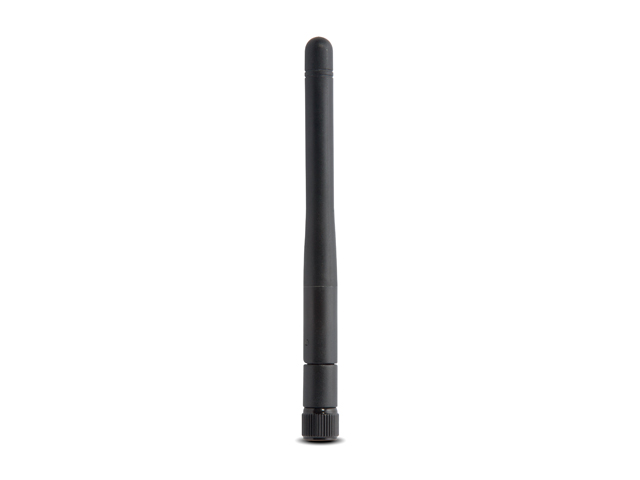

Extended range Bluetooth antenna

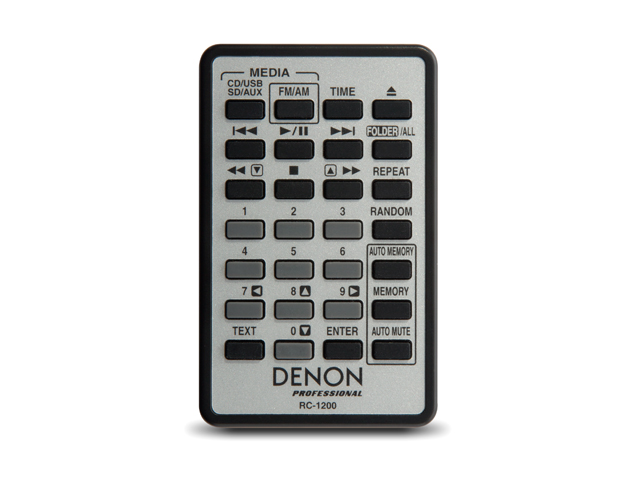

Remote Control (RC1200)
User Guide
Safety & Warranty Manual
