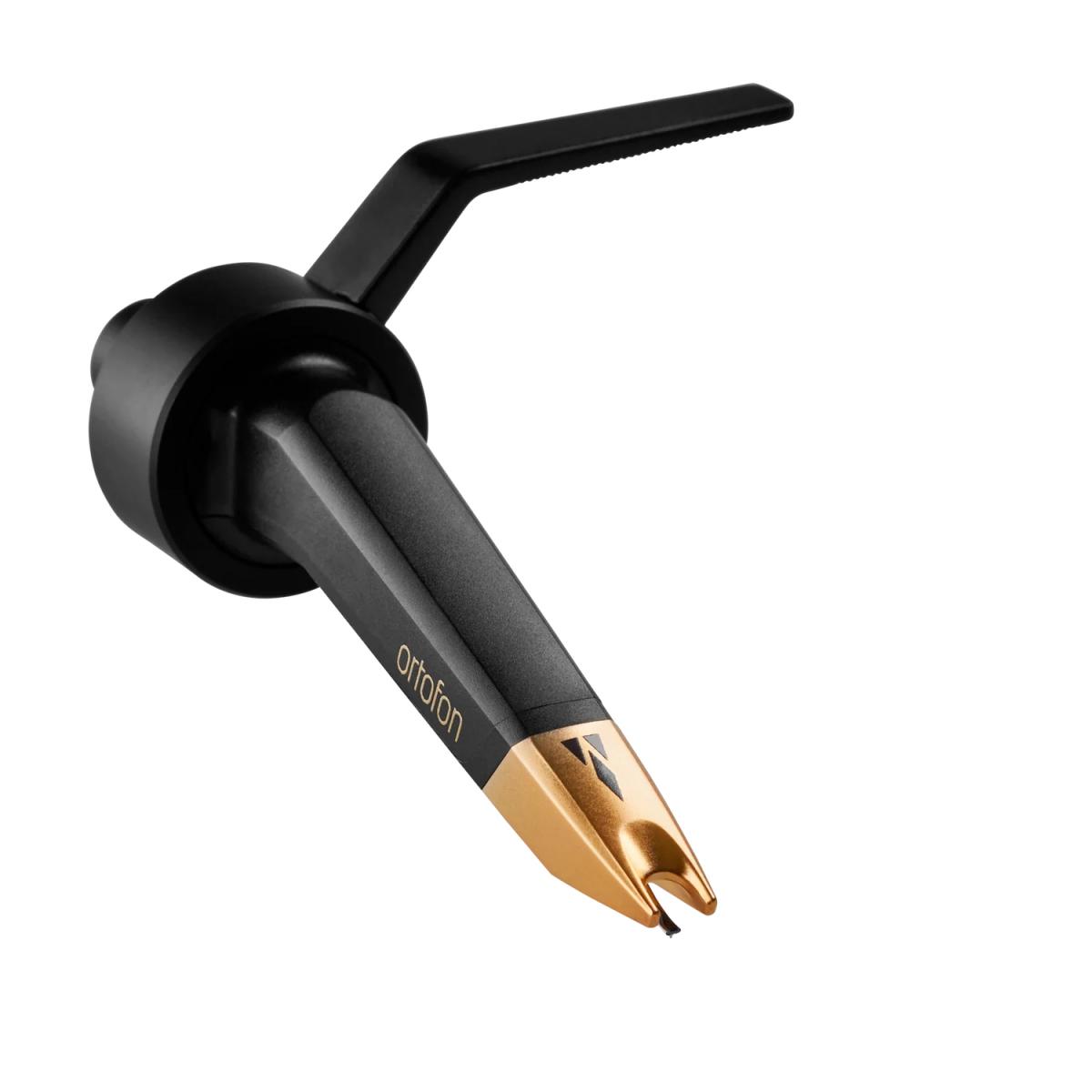

Ortofon Concorde ELITE Single

Hersteller: Ortofon

UVP 444,00 CHF

419,00 CHF

  • Lieferzeit nicht an Lager; muss angefragt werden!


Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung




The Concorde ELITE is a premium Moving Magnet cartridge, based on the legacy of the Ortofon Concorde MkII Series. Owing to the number of components' upgrades, the ELITE achieves a new level of sound quality, not previously found in the DJ categorized cartridges.

Concorde Elite technical data

  • Output voltage at 1000 Hz, 5cm/sec. - 8,5 mV
  • Channel balance at 1 kHz - 1 dB
  • Channel separation at 1 kHz - 25 dB
  • Channel separation at 15 kHz - 15 dB
  • Frequency range at -3 dB - 20 – 20,000 Hz
  • Tracking ability at 315Hz at recommended tracking force - 100 μm
  • Compliance, dynamic lateral - 13 μm/mN
  • Stylus type - Nude Elliptical
  • Stylus tip radius - r/R 8/18 μm
  • Tracking force range 2.0-4.0 g
  • Tracking force recommended - 3.0 g
  • Tracking angle - 20°
  • Internal impedance, DC resistance - 1.2 kOhm
  • Internal inductance - 800 mH
  • Recommended load resistance - 47 kOhm
  • Recommended load capacitance - 150-400 pF
  • Cartridge weight excluding screws - 18.5 g
  • Cartridge colour (body/stylus) - Black/Gold
  • Replacement stylus unit - ELITE
