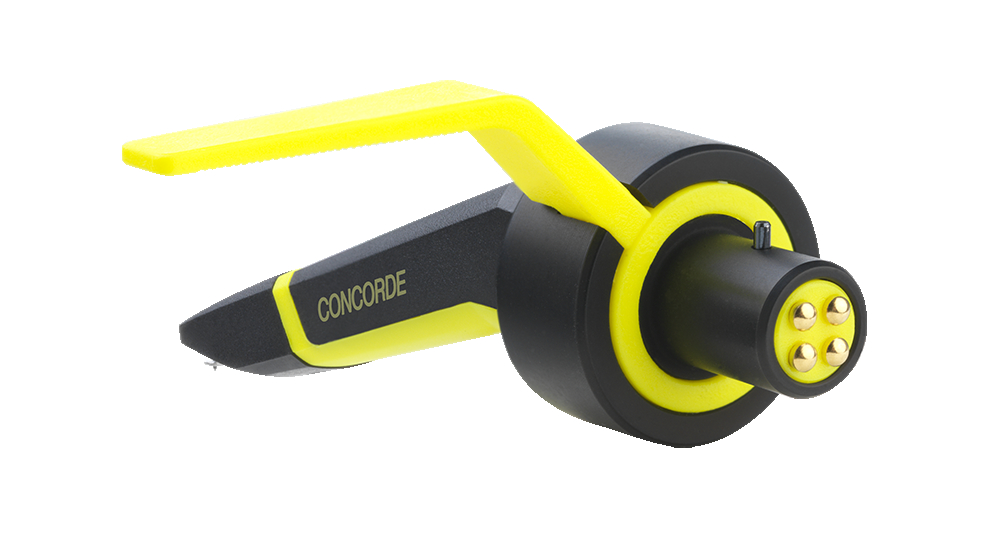

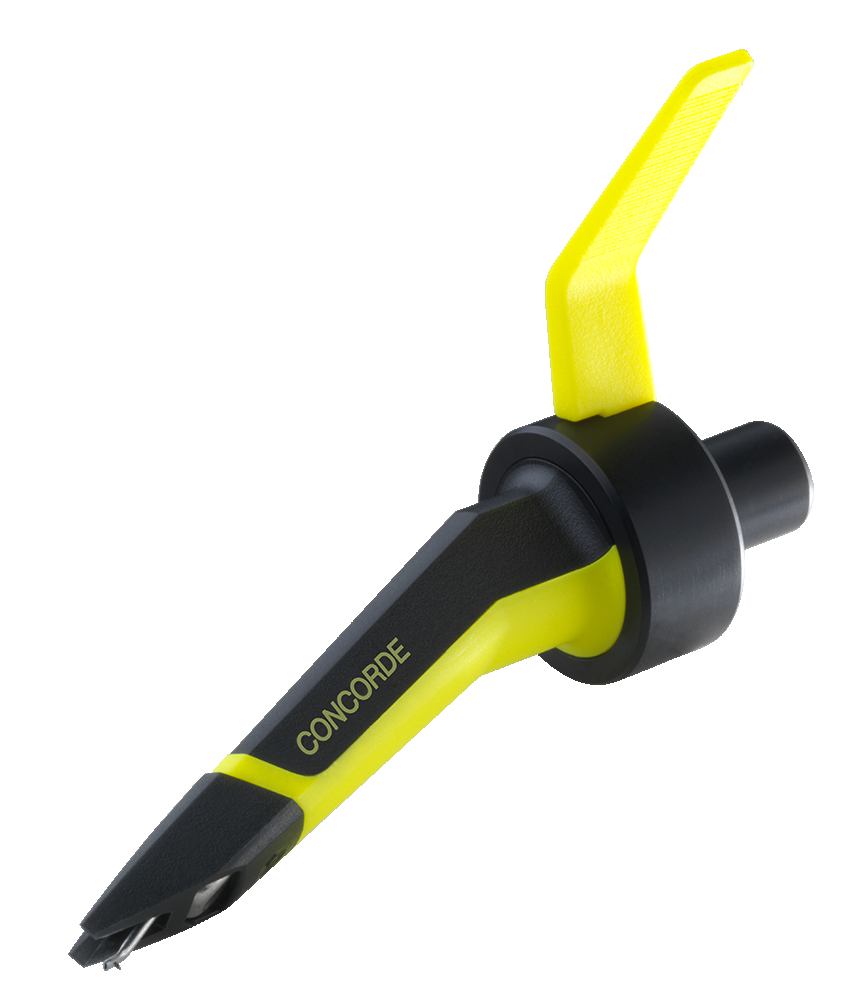

Ortofon Concorde MKII Club Ersatzstylus

Hersteller: Ortofon

Weitere Informationen:
http://www.ortofon.com/stylus-club-p-817-n-1444

UVP 79,00 CHF

75,00 CHF

  • Lieferzeit an Lager


Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung

an Lager (13.12.2024)

The best sound quality achievable for traditional vinyl playback



The CLUB boasts the best specifications and best sound, making it an ideal choice for Club DJs in any environment: studio, broadcast or club.



an Lager (22.11.2023)

• The CLUB features a Special-Elliptic stylus that allows for detailed sound quality: Special-Elliptic stylus fits better in the groove and therefore has more contact area with the groove itself, extracting more intricate details, than is possible with a spherical diamond.



• The CLUB’s 8 mV output voltage requires less gain from the preamps, providing cleaner sound reproduction and less susceptibility to feedback in live environments.


The CLUB offers an outstanding platform for archival and sampling.





Concorde CLUB technical data



Stylus Type Special Elliptical
Tracking Force 3.0 g
Output Voltage 8 mV
Frequency Range 20–20.000 Hz

Output voltage at 1000Hz, 5cm/sec. - 8 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 25 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical Elliptical r/R 13/25 μm
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g

Cartridge weight - 18,5 g
Replacement stylus unit - CLUB





Spares



Concorde CLUB is available in following configurations:

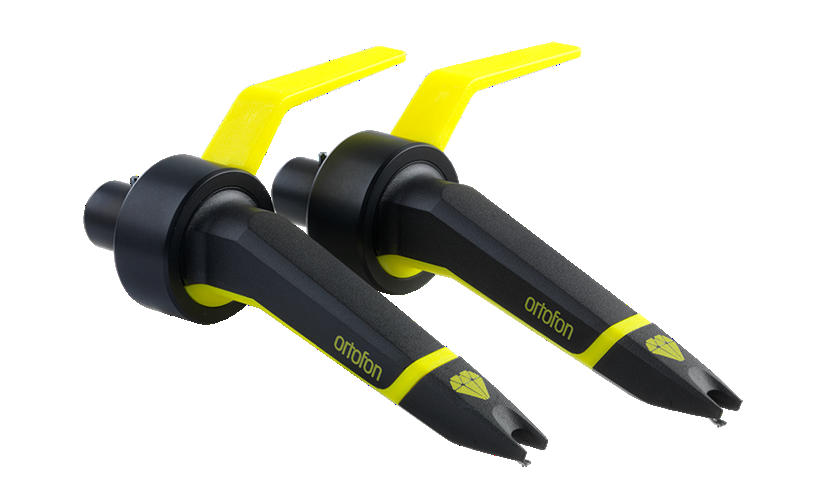

• Concorde TWIN (two Concorde MkII MIX cartridges with preinstalled styli), supplied in Flight case
• Concorde Single (one Concorde MkII MIX cartridge with preinstalled stylus)



Spares:

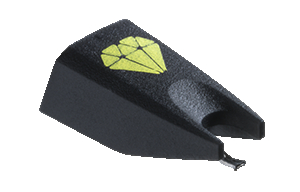

• Stylus CLUB
• Styli protection guards for Concorde MkII, pair
• Finger lift for Concorde MkII


Weitere Informationen: http://www.ortofon.com/stylus-club-p-817-n-1444
