Ortofon Concorde MKII Mix Twin Set

Hersteller: Ortofon

Weitere Informationen:
http://www.ortofon.com/mix-p-795-n-1444

UVP 209,00 CHF

195,00 CHF

  • Lieferzeit an Lager


Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung

an Lager (13.12.2024)


The MIX is a general-purpose model for scratch and back-cueing


• Provides great performance and durability. It has a good quality spherical stylus, a solid cantilever, and serves general purposes well.
• It offers both reasonable output, high sound quality and a good tracking ability for virtually any style of music.
• With transparent sound across the spectrum and excellent handling ability, the MIX represents one of the longest running values in DJ cartridges.


Excellent price-to-performance ratio.



Concorde MIX technical data

Stylus Type Spherical
Tracking Force 3.0 g
Output Voltage 6 mV
Frequency Range 20-20.000 Hz

Output voltage at 1000Hz, 5cm/sec. - 6 mV
Channel balance at 1kHz - 1,5 dB
Channel separation at 1kHz - 20 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-20.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 100 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 2 - 4 g
Tracking force recommended - 3 g

Cartridge weight - 18,5 g
Replacement stylus unit - MIX



Spares

Concorde MIX is available in following configurations:

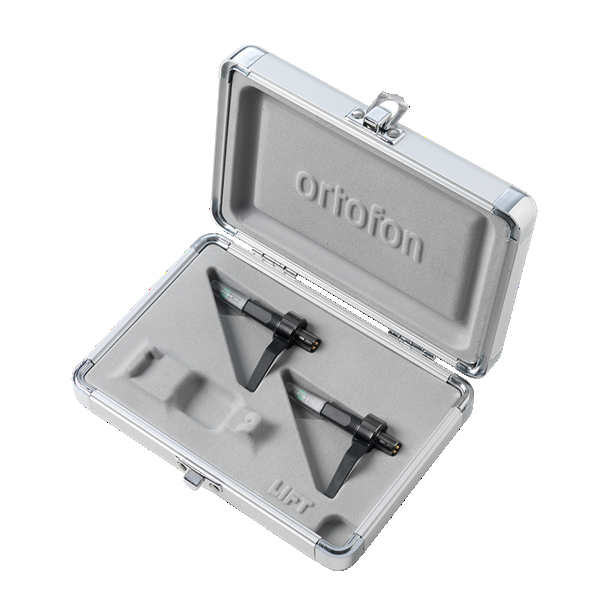

• Concorde TWIN (two Concorde MkII MIX cartridges with preinstalled styli), supplied in Flight case
• Concorde Single (one Concorde MkII MIX cartridge with preinstalled stylus)


Weitere Informationen: http://www.ortofon.com/mix-p-795-n-1444
