Ortofon Concorde MKII Scratch System

Name: Ortofon Concorde MKII Scratch System
Brand: Ortofon
Price: 135 CHF

Hersteller: Ortofon

Weitere Informationen:
http://www.ortofon.com/concorde-mkii-scratch-single-p-821-n-1444

UVP 149,00 CHF

135,00 CHF

zzgl. Versandkosten

Lieferzeit an Lager

Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung

an Lager (1.11.2024)

New levels of performance

The Concorde Scratch allows turntablist and scratching DJs to achieve new levels of performance with an unprecedented tracking ability and extra high output.

• The SCRATCH is intended especially for scratching and back-cueing. The SCRATCH uses spherical styli, as they preserve more of the groove over backcueing and scratching.
• For DJs that require increased tracking ability, the SCRATCH is up to the task. The Scratch has a supreme ability to trace the grooves of the records and it is tailored specifically for scratch.
• Due to its very high output 10 mV, it is perfect for scratch of all music with deep bass frequences. With solid bass reproduction and extended highs, the SCRATCH is great for any style, providing energetic sound. Maximum scratch performance guaranteed!

Concorde SCRATCH technical data

Stylus Type Spherical
Tracking Force 4.0 g
Output Voltage 10 mV
Frequency Range 20-18.000 Hz

Output voltage at 1000Hz, 5cm/sec. - 10 mV
Channel balance at 1kHz - 1 dB
Channel separation at 1kHz - 22 dB
Channel separation at 15 kHz - 15 dB
Frequency range at -3dB - 20-18.000 Hz
Tracking ability at 315 Hz at recommmended tracking force - 120 μm
Compliance, dynamic lateral - 14 μm/m N
Stylus type - Spherical R 18 μm
Tracking force range - 3 - 5 g
Tracking force recommended - 4 g

Cartridge weight - 18,5 g
Replacement stylus unit - SCRATCH

Spares

Concorde SCRATCH is available in following configurations:
• Concorde TWIN (two Concorde MkII MIX cartridges with preinstalled styli), supplied in Flight case

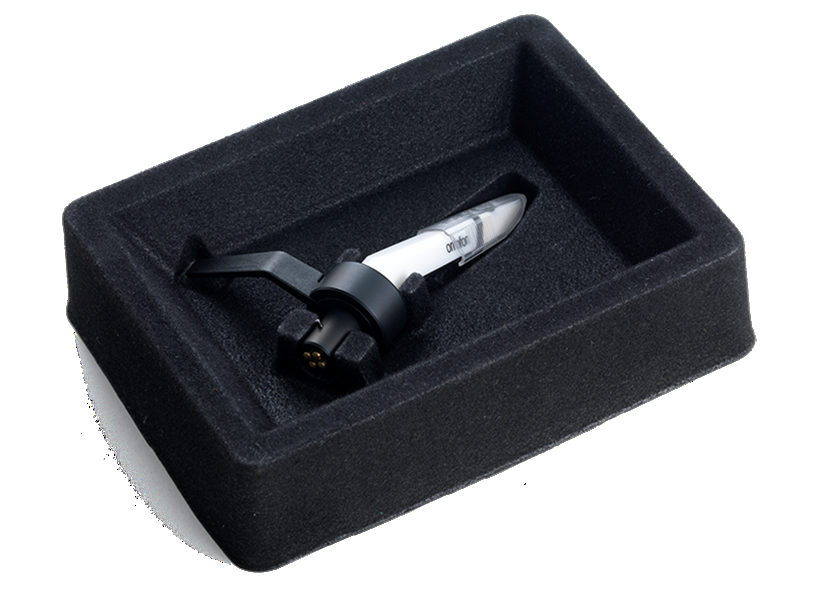

• Concorde Single (one Concorde MkII MIX cartridge with preinstalled stylus)

Spares:

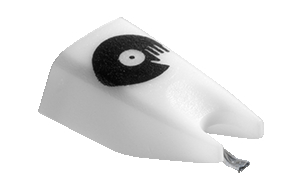

• Stylus SCRATCH
• Styli protection guards for Concorde MkII, pair
• Finger lift for Concorde MkII

Weitere Informationen: http://www.ortofon.com/concorde-mkii-scratch-single-p-821-n-1444

Empfohlenes Zubehör
