UNIKA PRO 3SP

Hersteller: UNIKA

Weitere Informationen:
https://www.unikapro.com/portfolio-item/pro-3sp/#tab-id-1

UVP 129,00 CHF

129,00 CHF

  • Lieferzeit an Lager


Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung

an Lager (13.9.2024)

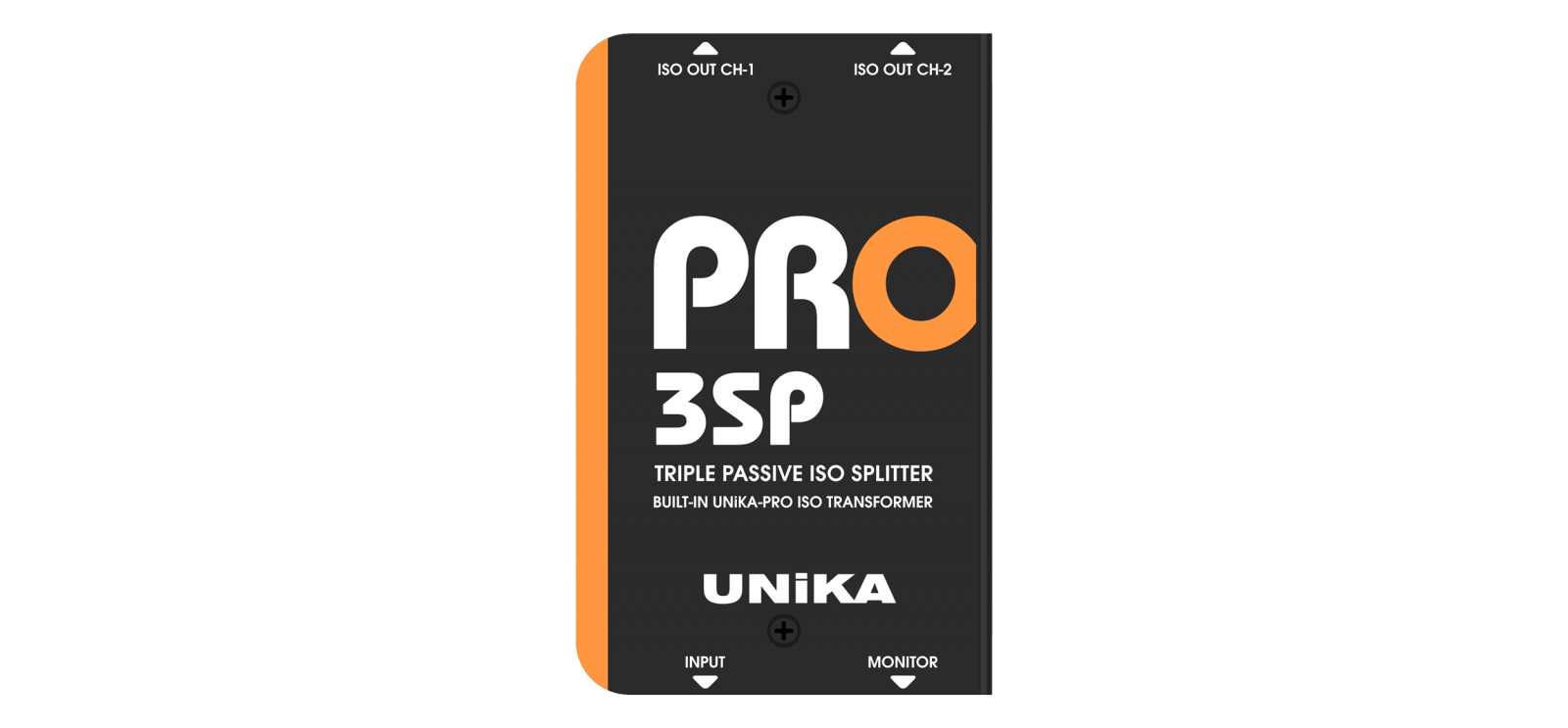

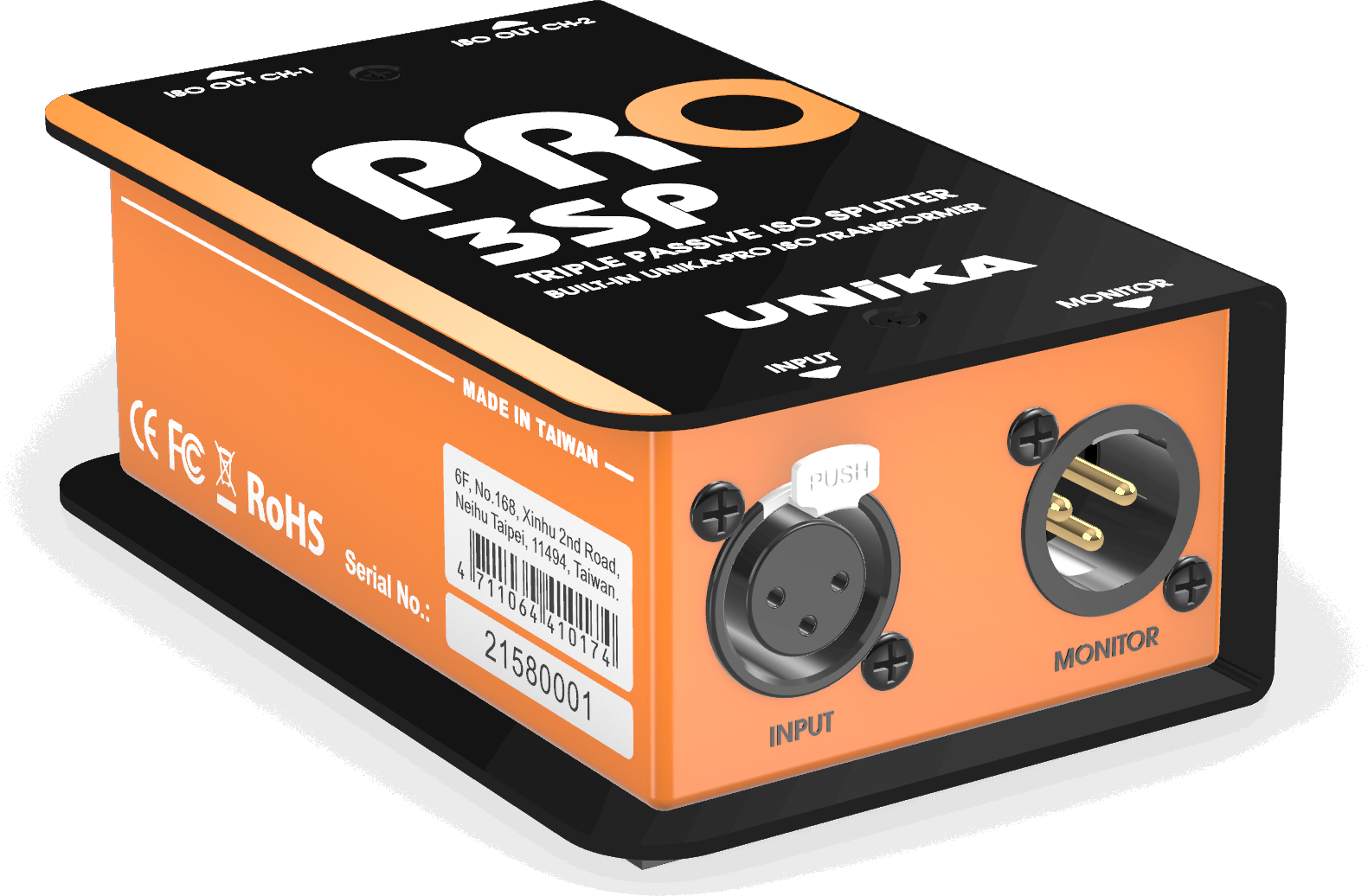

PRO 3SP is a passive one-input and three-output isolated signal splitter without the need to install batteries or provide phantom power.

PRO 3SP has a pair of built-in UNiKA-PROTM EI30A10E 1+1:1+1 isolation transformers, which has a special copper foil layer and a dedicated ground layer, which allows this device to restore high signal/noise ratio and dynamic sound, and can avoid unnecessary Leakage caused by radio frequency interference, ground interference and potential difference. PRO 3SP is particularly suitable for recording studios, live performances and fixed installation projects.

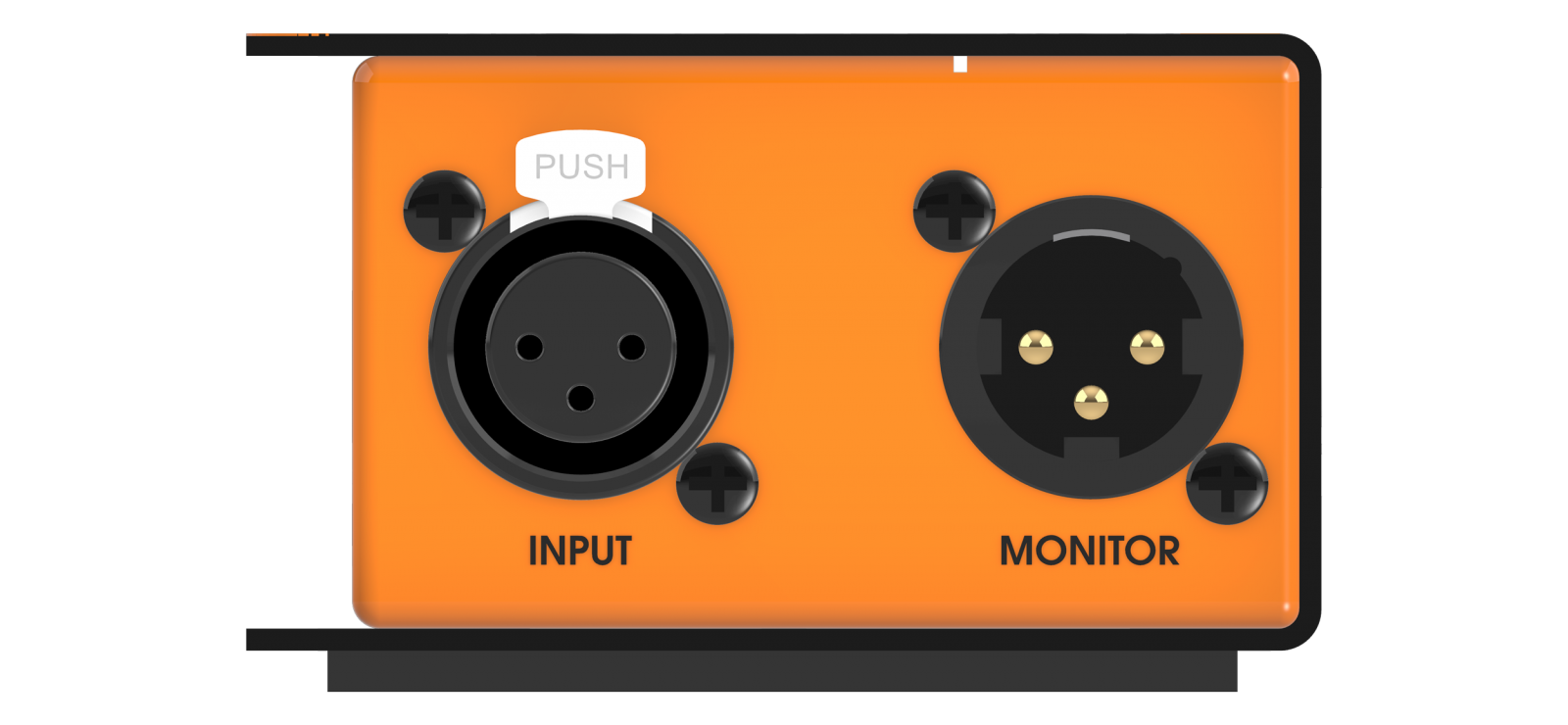

PRO 3SP’s input uses XLR balanced sockets, suitable for inputting LINE signals. The XLR balanced sockets output by MONITOR are parallel and straight through without isolation transformers; CH-1/CH-2 output channels each have independent UNiKA-PROTM isolation transformer and shared GND/LIFT switche for easy connection to remote or different power sources at the end of the equipment to eliminate the leakage and noise caused by the potential difference and the ground loop.

FEATURES
.One input & three output audio splitter
.CH-1/CH-2 are equipped with separate UNiKA-PRO EI30A10E isolation transformer
.Use XLR jack for input
.Set the direct output of MONITOR OUT without isolation transformer

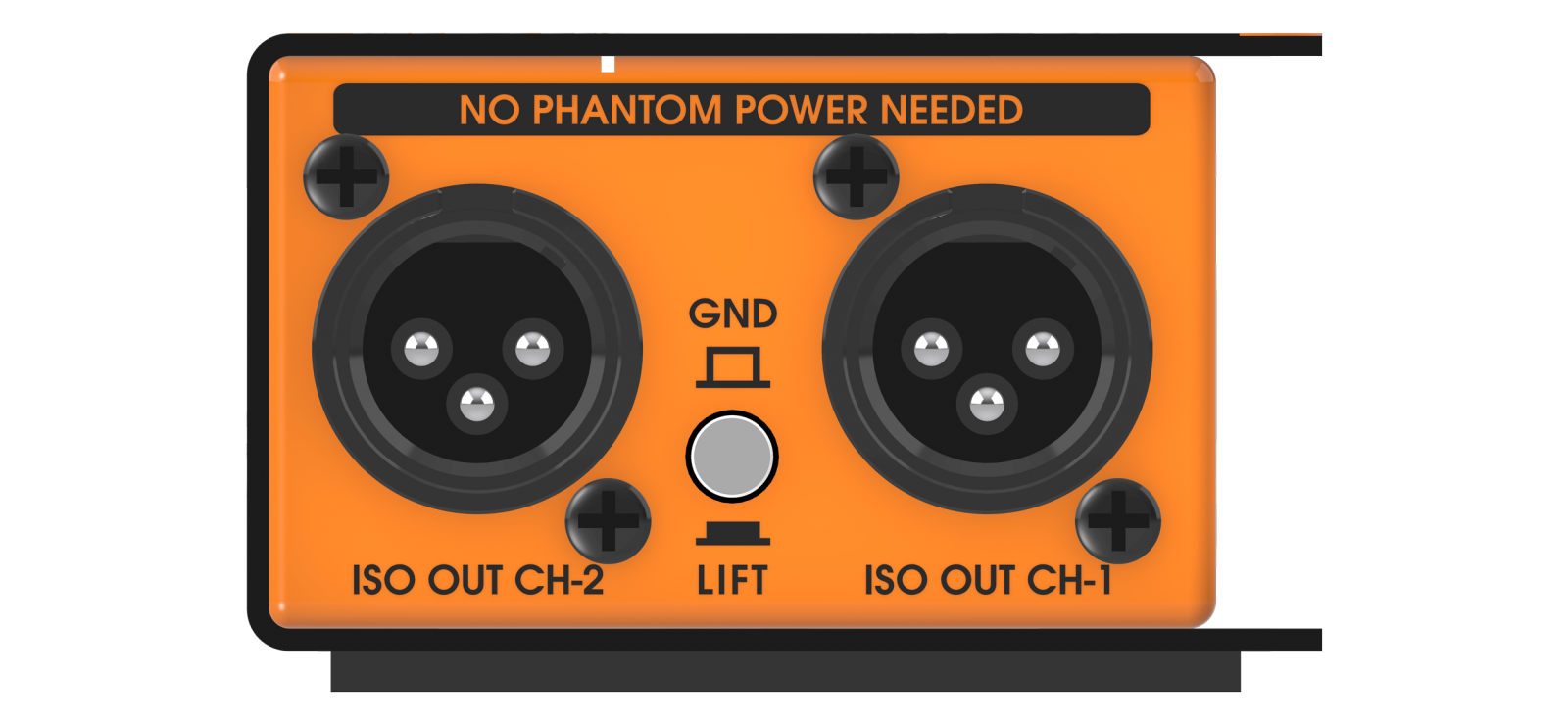

.The output is equipped with a shared GND/LIFT switch

SPECIFICATIONS
Circuit principle   -  Passive/Transformer balance output
Input connector   -  1 x Female XLR
Monitor out connector   -  1 x Male XLR without ISO Transformer
Input impedance   -  4.7KΩ
Output impedance   -  50Ω
Max. input level before clipping   -  +22dB
Max Output level   -  +22dB
Output connector   -  2 x Male XLR through ISO Transformer
Output GND/LIFT switch   -  Shared push button
Frequency response  -   20Hz-20KHz, -0.3/+0.1dB
S/N ratio @20Hz~20KHz un-weight   -  >120dB
T.H.D. @1KHz 0dBV output   -  <0.02%
Transformer Ratio   -  1:1+1:1
Chassis  -  1.6mm/1.2mm steel cabinet and chassis
Surface finished   -   Durable complex painting
Dimension (W x D x H)   -  78 x 124 x 46 mm
Weight  -   0.62Kg
