api 560 - 10 Band graphic EQ

Hersteller: api Audio

Weitere Informationen:
http://www.apiaudio.com/560.html

1229,00 CHF

  • Lieferzeit wird beim Importeur angefragt


Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung

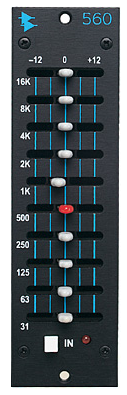

560 Discrete 10 Band Graphic EQ




Features



  • 10 bands of API proprietary equalization
  • Familiar graphics operation on one octave centers
  • 12 dB of boost/cut per band
  • "Proportional Q" narrows filter Q at extremes
  • Additional resolution within the ±4 region
  • Center detent for reliable reset
  • Silent bypass button
  • Based on the original 1969 API 560 EQ





Originally conceived for use in API consoles of the ’60s and ’70s, the 560 is a unique device designed to accomplish tasks that no other EQ can. Extremely fast to set and reset using accurate zero detents, the curve shaping potential of the 560 remains unmatched. With a wide range of 500 mounting options, from racks to consoles, the 560 proves an invaluable asset to all critical performance applications. Based on API’s original 560 EQ, the current production 560 has improved resolution in the ±4 dB area and possesses our exclusive circuitry and proprietary components, including the API 2520 Op Amp.



The extraordinary headroom made possible with the 2520 offers consistent analog performance even when using radical EQ curves. Of course, the 2520’s ability to drive low impedance loads is key when it is paired with API’s custom output transformers. The results are quite audible with better low frequency reproduction and tighter imaging, which gives you that legendary API "punch in your gut" sound.



The 10 precision EQ bands make the 560 ideal for signal sweetening and room tuning. A great companion to a parametric EQ, the 560 utilizes API’s unique "Proportional Q" design introduced during the ’60s. This design intuitively widens the filter bandwidth at lower boost/cut levels and narrows it at higher settings. Additionally, boost and cut characteristics are identical, allowing previous actions to be undone if desired.



Reliable, durable and uniform, the API 560 EQ delivers that "one-of-a-kind API sound" with precision easy set filtering and high headroom in a compact package. If you want the sound of classic American music in an easy-to-set graphic EQ package, you want the API 560.






Weitere Informationen: http://www.apiaudio.com/560.html
