Chameleon Labs 7721 Stereo VCA compressor

Chameleon Labs 7721 Stereo VCA compressor

Name: Chameleon Labs 7721 Stereo VCA compressor
Brand: Chameleon Labs
Price: 790 CHF

Hersteller: Chameleon Labs

Weitere Informationen:
http://www.chameleonlabs.com/products/7721#

UVP 899,00 CHF

790,00 CHF

zzgl. Versandkosten

Lieferzeit nicht an Lager; muss angefragt werden!

Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung

The Chameleon Labs 7721 Stereo VCA compressor is a powerful analog processor designed to make your tracks sound more compact and powerful.

Features

- Stereo compressor with VCA-based signal detection
- Super low noise, IC based input section
- Side chain input allows a seperate source to be used as the compression trigger
- IC based, ultra-low noise output stage
- VU meter for Input / Output Level and Gain Reduction monitoring
- Super low noise internal power supply

- Selectable high pass filter
- Threshold, Attack, Release and Ratio controls
- Selectable detection type Peak or RMS
- Selectable compression types: Soft or Hard Knee
- Blend control allows you to mix the compressed audio signal with the original signal

Description

When designing the 7721, Chameleon’s engineers started with a clean sheet of paper and deeply evaluated the details associated with developing a bus compressor for the modern studio. Basing detection and voltage control on a voltage control amplifier (VCA) topology and designing a circuit that provides low noise and transparency the team created an acoustic “glue" that is capable of consistently delivering punch and loudness to the signal.

The 7721 provides a classic set of adjustable settings as well as controls only available on esoteric compressors, including:

- Soft Knee / Hard Knee – Allows you to change between a softer arriving compression effect and a faster arriving, limiting type effect.

- Peak / RMS – This control allows you to choose between the Peak and RMS detection schemes that are quite different. Peak detection engages the compressor by monitoring peak or instantaneous voltage signals. RMS engages by looking at the average energy in the signal and comparing it to the threshold setting. Very different modes of operation that provide great solutions for specific problems.

- High Pass Filter – If you decide to use a Side Chain signal as the compression trigger signal, you can use the High Pass Filter to high the audio signal and avoid pumping effects.

- Classic Controls – Threshold / Attack / Release / Ratio – Low ratios provide a nice starting place for master transparency, 4:1 provides more color and higher ratios for a tougher sound full of character. We like to use Attack and Release controls to respond to tempo and feel of a track.

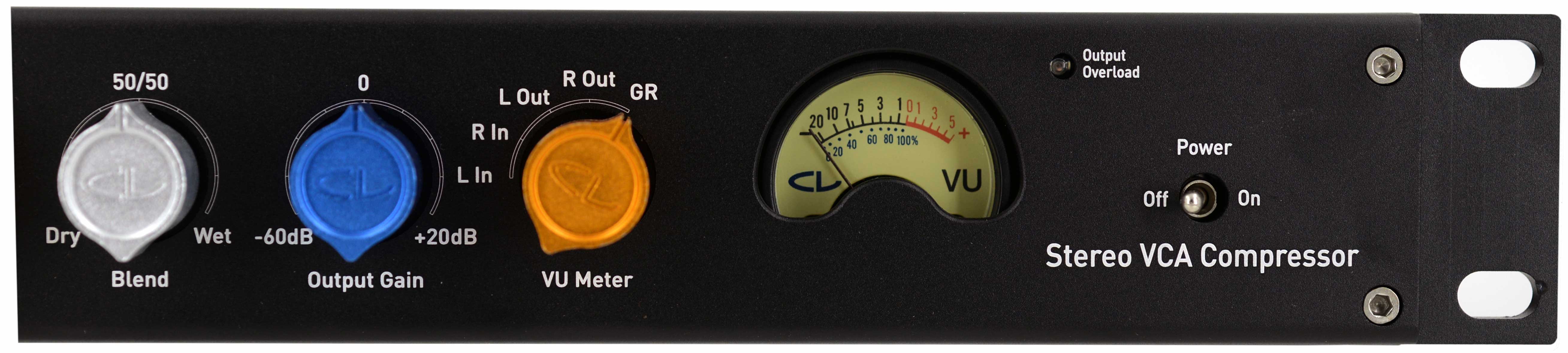

- Blend – This control allows you to blend, or mix, the original uncompressed signal with the compressed signal providing another tool you can use to obtain your desired objective.

- VU Meter - Monitor Input, Outputs and Gain Reduction levels.

Specifications

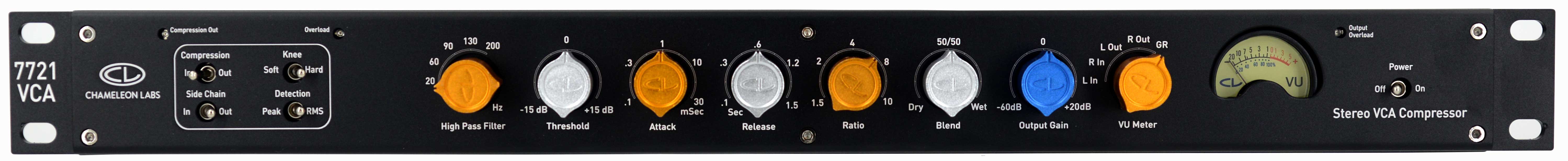

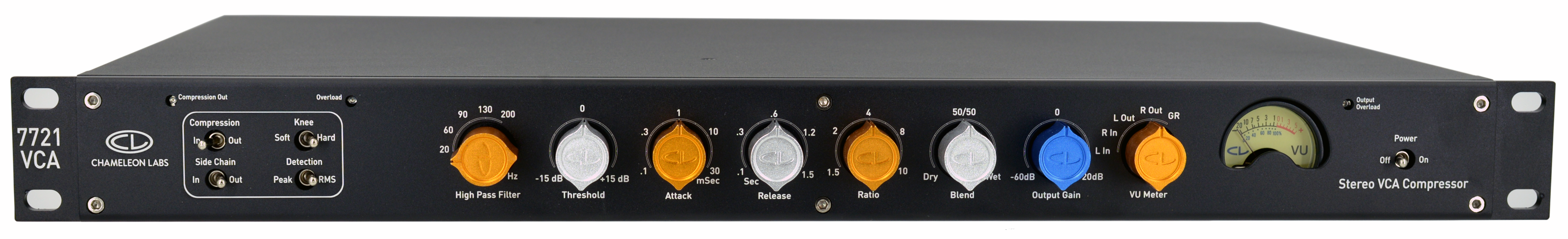

User Controlled Functions

- On Switch:Turn Unit On - VU Meter Light is ON

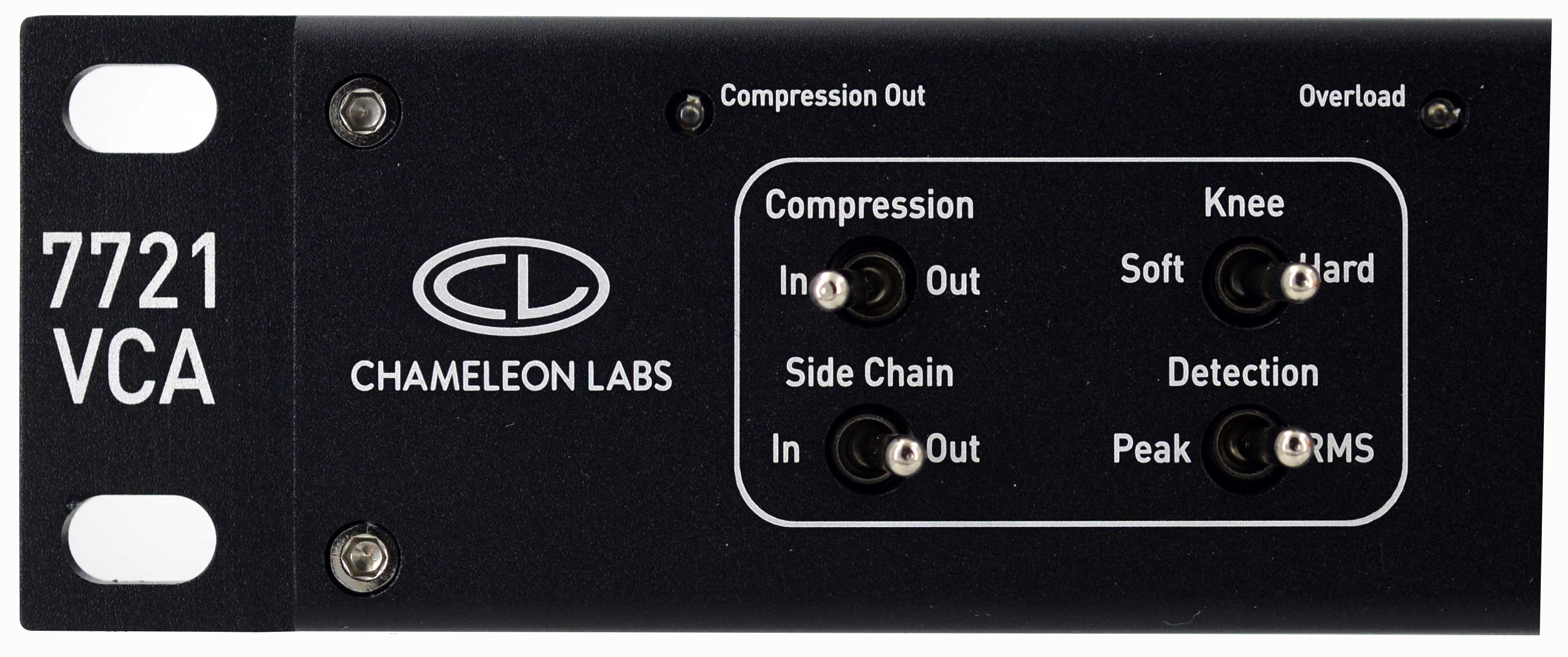

- Compression:Insert compression circuit or bypass
- Side Chain:Use Side Chain Input for triggering
- Compression:Soft or Hard knee compression type
- Detection:Peak or RMS
- High Pass Filter:60, 90, 130 or 200 Hz high pass filter applied to Side Chain detection signal
- Threshold:Applied between -15dB and +15dB
- Attack:Attack time in milli seconds - .1 / .3 / 1 / 3 / 10 / 30
- Release:Release time in seconds - .1 / .3 / .6 / 1.2 / 1.5
- Ratio:Compression ratio selection 1.5 / 2 / 4 / 8 / 10
- Blend:Full Dry equivalent to 0% compression, Full Wet equivalent to 100% compression
- Output Gain:-60dB to +20dB Output Level control
- VU Meter controls (L&R):In - Input / Out - Output / GR - Gain Reduction

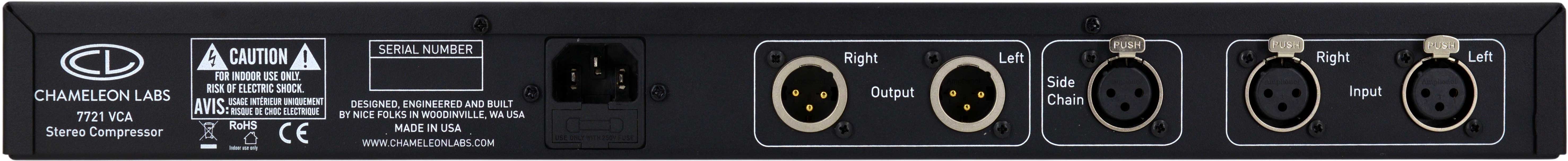

Input Connectors

- Input (Female XLR):50 kΩ
- Side Chain Input (Female XLR):50 kΩ
- Output (Male XLR):200 Ω

Audio Specifications

- Noise Specification:<-100dBu Input Terminated with 600 Ω, compressor ON and Output Gain set to 0dB
- Frequency Response:20Hz - 20kHz +/- 0.25dB
- Headroom:> 20dB output level
- Dynamic Range:100 dB per AES17 Standard
- Common Mode Rejection:100Hz - 10kHz >90dB
- Input and Output Impedance:>10kΩ / <50 Ω
