Midas DL16 Stage Box

Name: Midas DL16 Stage Box
Brand: Midas
Price: 959 CHF

Hersteller: Midas

Weitere Informationen:
https://www.midasconsoles.com/product.html?modelCode=P0BI3

UVP 1090,00 CHF

959,00 CHF

zzgl. Versandkosten

Lieferzeit nicht an Lager; muss angefragt werden!

Zu diesem Artikel existieren noch keine Bewertungen

Produktbeschreibung

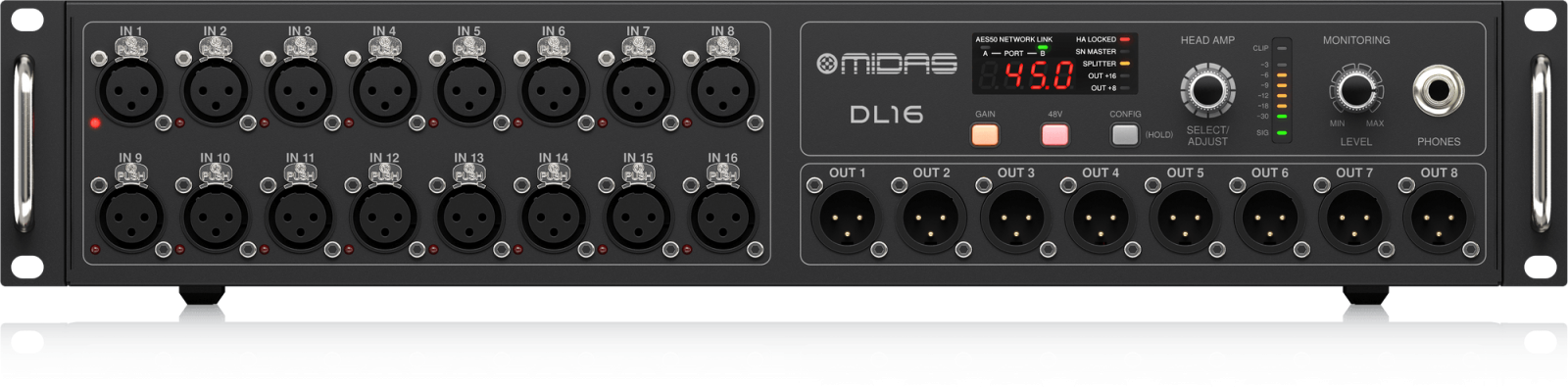

16 Input, 8 Output Stage Box with 16 Midas Microphone Preamplifiers, ULTRANET and ADAT Interfaces

16 award-winning MIDAS PRO microphone preamplifiers with switchable +48 V phantom power
8 electronically balanced low impedance line level outputs
ULTRANET personal monitoring system connectivity for in-ear applications

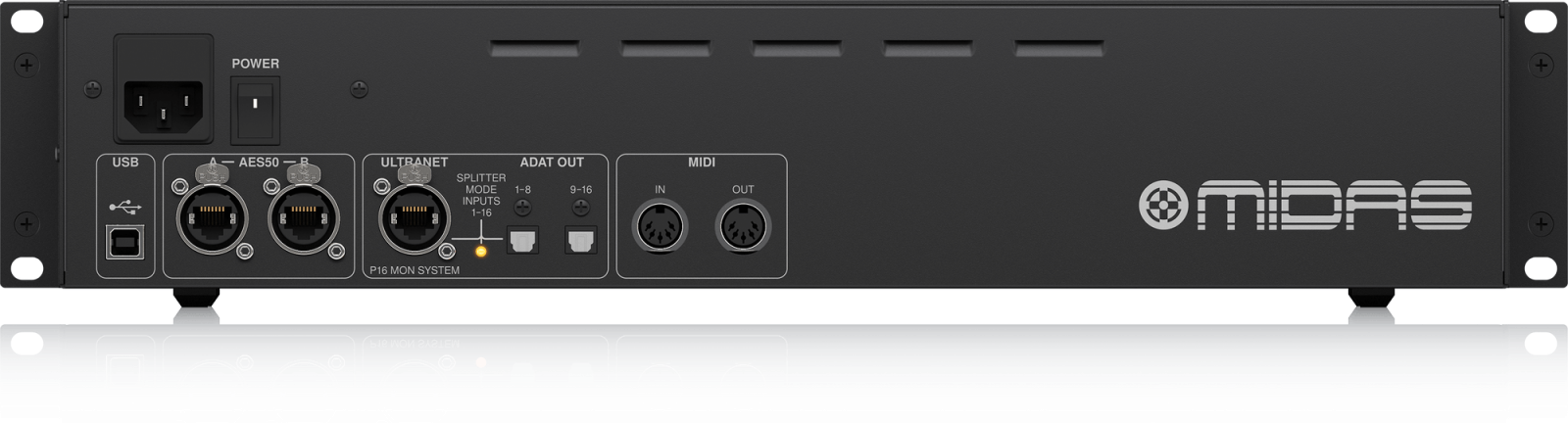

Dual ADAT* outputs for use in splitter mode and stand-alone digital multicore applications
Dual AES50 ports for cascading DL16 units—no merger or router required
Remote operation up to 100 m via CAT5/5e cable
All settings programmable from front panel controls or console
Status indicator LEDs on front panel
Headphones output assignable to any of the inputs or outputs for on-stage monitoring
MIDI In/Out for bidirectional communication between FOH console and on-stage MIDI devices
Features Neutrik etherCON* AES50 and ULTRANET network ports
Rugged 2U rackmount chassis for durability in portable applications
Auto-ranging universal switch-mode power supply

Digital mixing has revolutionized virtually everything in the live entertainment production work flow, and now that same cutting-edge technology brings live production signal distribution into the modern age. The DL16 Stage Box provides 16 of our award-winning microphone preamplifiers with switchable +48 V phantom power; 8 balanced analogue XLR returns at the stage end; an integrated ULTRANET output for connecting to Behringer P16-M personal monitor mixers; plus connectivity for your ADAT-compatible outboard equipment.

If your application calls for more inputs, or just want to keep your cable runs short and tidy, putting a DL16 at stage front and another behind the drum riser provides an additional 16 inputs for drum and guitar/bass amp mic’ing. The best part – all it takes is a single CAT5 cable per stage box.

Weitere Informationen: https://www.midasconsoles.com/product.html?modelCode=P0BI3
