Presonus Studiolive 24R

an Lager (23.10.2024)


The perfect partner for a StudioLive Series III console.

Der 24-kanalige PreSonus® Series III StudioLive® 24R ist eine vielseitig nutzbare Stagebox für StudioLive Series III Konsolen und einer der leistungsfähigsten Rackmixer seiner Klasse Er lässt sich als einfache Stagebox oder als Kombination aus Stagebox und 16-Kanal-Monitormischer nutzen, wobei sich die Preamps und die Phantomspeisung über das Series III Mischpult steuern lassen. Wie die Series III Konsolenmischer ist der Mixer vollständig fernsteuerbar und bietet einen Plug-In-basierten Workflow mit klassischer Hardware nachempfundenen EQ- und Kompressor-Optionen in jedem Kanal. Außerdem stehen sechs als Aux- Subgruppen- oder Matrix-Mischungen nutzbare FlexMixes, vier dedizierte Subgruppen, vollparametrische 6-Band-EQs in allen Mix-Ausgängen und eine AVB-Netzwerkschnittstelle zur Verfügung. Neben den 40x40 USB- und 55x55 AVB-Aufnahme-Interfaces verfügt der StudioLive 24R über einen integrierten SD-Stereorecorder.

Features

    24-Kanalige AVB Stagebox für StudioLive Series III Konsolen
        Stagebox-Modus
        Stagebox/Monitor-Mixer-Modus mit Fernsteuerung der Preamps und der Phantomspeisung über eine StudioLive Series III Konsole
    Vollständig fernsteuerbarer 32-kanaliger SERIES III Digital-Rackmixer (24 Mic/Line-Eingänge + acht Digitalkanäle)
    26 Eingänge
        24 verriegelbare Combo-Eingänge (Mic/Line) mit fernsteuerbaren XMAX Class-A-Mikrofonvorverstärkern
        Zwei Line-Eingänge im Cinch-Format (Kan. 23-24)
    12 6,35 mm TRS-FlexMix-Ausgänge
    Zwei XLR-Main-Ausgänge (Links/Rechts)
    Szenenverwaltung mit Scene-Safe-Funktion
    Sechs FlexMixes (Aux-, Subgruppen- oder Matrix-Mischungen)
    Vier dedizierte Subgruppen
    Vier interne Effekt-Busse mit aktuellen und klassischen Reverb- und Delay-Effekten
    Fat-Channel-Bearbeitung mit klassischen EQ- und Kompressor-Modi in jedem Kanal sowie A/B-Vergleich
    40x40 USB 2.0 Recording-Interface und 55x55 AVB Recording-Interface
    Integrierter Stereo-SD-Karten-Recorder
    Komplettlösung: Inklusive UC Surface Multitouch-Steuerungssoftware für Mac, Windows, iPad und Android; CaptureTM Live-Aufnahmesoftware und Studio One® Artist DAW für Mac und Windows; kompatibel mit der kostenlosen Personal-Monitoring-App QMix-UC® für iPhone®/iPod® touch und AndroidTM


The StudioLive 24R Series III rack mixer is a perfect partner for your StudioLive Series III console/recorder, serving as either a simple stage box or a combination stage box and monitor mixer. Since Series III rack mixers and consoles can network using AVB, you can connect your StudioLive 24R to a Series III front-of-house console with one lightweight CAT5e or CAT6 Ethernet cable, eliminating the need for a heavy, expensive copper snake-and the signal degradation that goes with long analog cable runs. You can even remote control the StudioLive 24R's preamps and phantom power from your networked Series III console. In stage box + monitor mixer mode, the StudioLive 24R not only serves as an excellent networked stage box, it is a full blown monitor mixer with far more processing and mixing power than any mixer in its class-all packed into just two rackspaces (2U).

The most powerful rack mixer in its class.

When we say the StudioLive® Series III stage boxes and rack mixers are by far the most powerful rackmount digital mixers in their class, that's no idle claim. The result of ten years of R&D, third-generation StudioLive Series III rack mixers are fully recallable, including remote-controlled XMAX preamps. Yet despite their extensive features, StudioLive Series III rack mixers actually improve upon PreSonus®' legendary ease of use while letting you customize their workflow and operations in software to fit the way you work. The coveted StudioLive sound is better than ever, including third-generation Fat Channel processing, re-engineered from the ground up, and vintage-style EQs and compressors. Add built-in AVB networking, multitrack recording via USB 2.0 and AVB, onboard stereo recording to SD Card, and a complete suite of software, and you have a mixing and recording powerhouse that's equally formidable as a stage box/monitor mixer, as a rackmount front-of-house mixer controlled from a touchscreen computer or tablet, and as the heart of your studio.

A third-generation Fat Channel.

StudioLive Series III rack mixers boast the same third-generation Fat Channel processing found in StudioLive Series III consoles. Delivering digital precision with the heart and soul of analog, the Series III Fat Channel implements a plug-in-style workflow that features vintage-style EQ and compression options on every channel, from classic tube limiters to passive EQs. In addition to channel processing, all StudioLive Series III mixers offer 6-band, fully parametric EQ on all mix outputs. Enjoy extensive, studio-style processing when recording, mixing monitors, or even running the front-of-house system.

Customize scenes and presets in new and powerful ways-including your way.

With StudioLive Series III, we've upped the ante and given you more flexibility when working with scenes and presets. Mixer scenes now include Scene Safe. Similarly, we've expanded the concept of Fat Channel presets so that presets have, for practical purposes, become like scenes for individual channels, not only saving input and Fat Channel settings but also aux send and bus assignments. Of course you can also use preset filters to choose what you want to recall.

Create buses and groups to suit your workflow with FlexMixes.

Don't you hate it when you're setting up for a show and find you have an unused subgroup-but you're short one monitor mix? That's not a problem anymore, thanks to 16 FlexMixes that can be individually designated as aux, subgroup, or matrix mixes. These 16 FlexMixes are in addition to the 4 fixed subgroups giving you a total of 20 mix buses, not counting the main mix and solo buses. We also provided 24 Filter DCAs so you can more easily and flexibly control groups of channels. These are only a few of the many ways you can customize your StudioLive Series III rack mixer exactly to your needs and workflow.

Integrated software package with professional DAW, remote-control apps, and one-touch recording.

PreSonus StudioLive Series III mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly or over a wired network from anywhere using UC Surface touch-control software for Mac, Windows, Android, and iPad®. Remote control the mixer's recallable XMAX preamps and Fat Channel processing with Studio One Artist for low-latency recording with effects. (Reverb-drowned singers: rejoice!) Completely automate virtual soundchecks and record shows with Capture. Save mixer scenes with your live recordings in Capture and edit both in Studio One Artist. StudioLive Series III mixers and software work together to form a cohesive ecosystem that helps you achieve your creative vision.

Network-ready, with a choice of recording methods.

Networking isn't the future of professional audio systems; it's here now. StudioLive 24R Series III rack mixers come equipped with an AVB Ethernet connection that enables you to network multiple StudioLive Series III mixers and compatible computers and stream up to 55 channels of audio to and from a Mac or Windows PC. You also get 40x40 recording via USB 2.0, giving you a choice of computer recording methods. Each channel can independently access its analog input or its dedicated digital return from your computer. Alternatively, quickly and easily record the main mix-or any other stereo mix-to the built-in SD Card recorder. Upload a show for fans, give the band a reference recording, and more, no computer required. You can even simultaneously multitrack record to your laptop via USB or AVB and record in stereo to SD.

Remote mix control available on a plethora of both wired and wireless devices.

In addition to the AVB recording connection, StudioLive Series III rack mixers sport a 1 Gb Ethernet port that can connect to a wireless router or directly to a computer, providing remote control of virtually all features. Mix wirelessly or over a wired network from anywhere using UC Surface for Mac®, Windows®, iPad®, and Android TM tablet. Even add a second-or third, or even fourth!-screen for fast workflow. Musicians can control their monitor mixes onstage with QMix®-UC for iPhone®, iPod® touch, or Android device without the need for large monitor networks. Go wireless, wired, or both.

Simple but versatile audio connections.

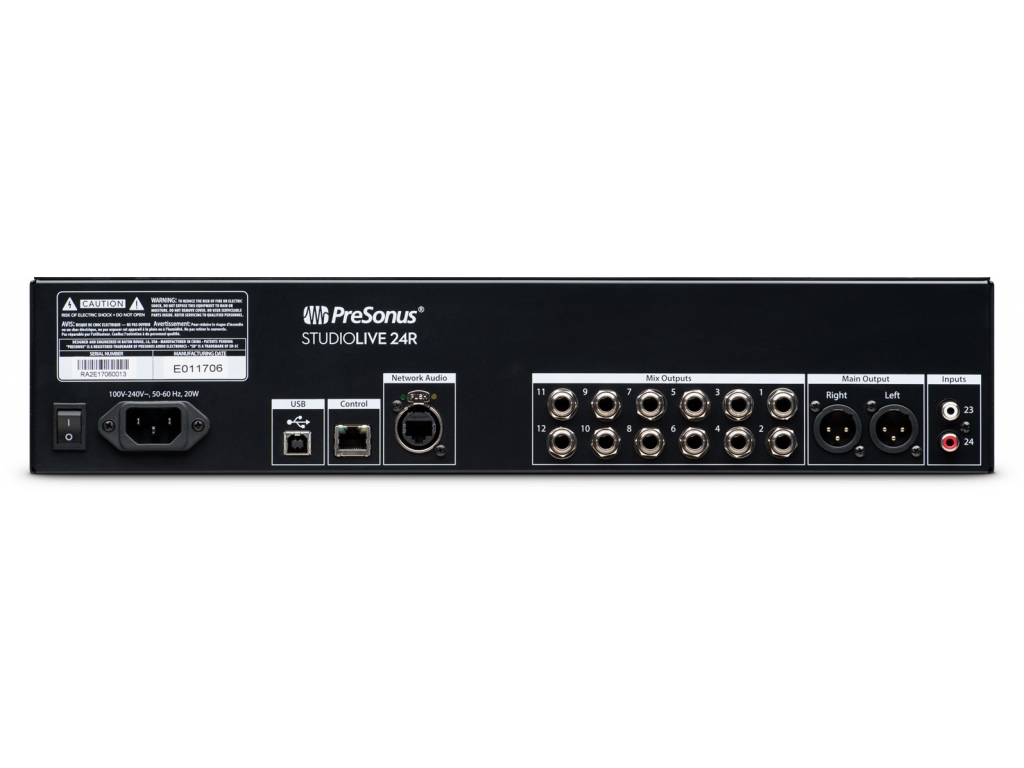

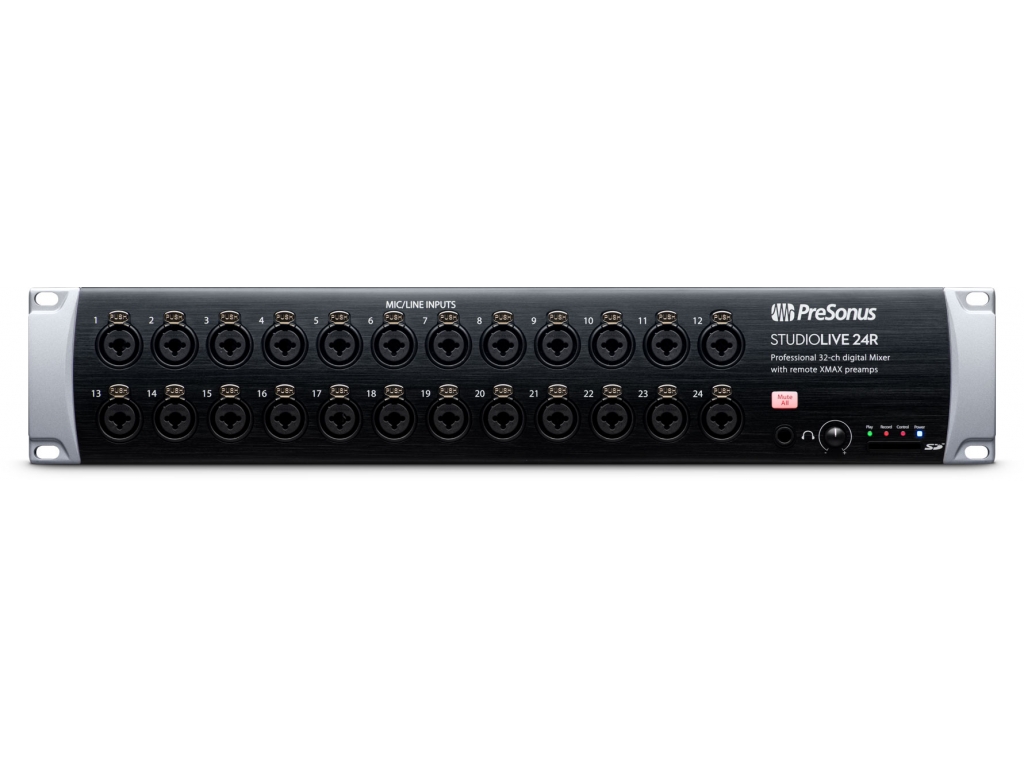

We kept the StudioLive Series III rack mixers' front and rear panels clean and simple, yet they have all the connections you need. All 24 channel inputs on the StudioLive 24R use locking combo jacks to accept microphone- or line-level signals. You also get a pair of unbalanced RCA jacks as additional inputs for Channels 23 and 24 for easy connectivity to smartphones, media players, and other consumer audio sources. In addition to main L/R outputs and headphone jack, you get 12 FlexMix outputs that can each be independently configured as subgroups, monitor outputs, or matrix outputs. The result is a versatile set of connections that provide the access you need in a compact, 2U package.

Superior sound.

Connect a StudioLive Series III rack mixer, and you'll instantly hear details and an open high end you'd expect to find only in an expensive studio console.? We built our reputation designing great-sounding analog circuits, including our famous XMAX solid-state, Class A preamps, and we put all of that experience into designing StudioLive Series III consoles and rack mixers. We didn't cut corners on components, and we just say "No!" to noisy, crosstalk-y ribbon cables. As a result, StudioLive Series III mixers deliver the high-end audio quality you need to preserve your hard-earned reputation for producing great-sounding mixes and recordings.

Now includes Studio Magic Plug-in Suite.

This suite of plug-ins adds a wealth of fresh sounds and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavor of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll rely on for countless mixes.

Computer system requirements:

Below are the minimum computer-system requirements for UC Surface, QMix®-UC, and Studio One®.

Mac

Operating Systems supported:

• macOS 11.2 Big Sur,
• macOS 10.15 Catalina,
• macOS 10.14.6 Mojave,
• macOS 10.13.6 High Sierra

Intel® Core™ 2 Duo processor (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)

Windows

Windows® 7 x64/x86 SP1 + platform update, Windows 8.1 x64/x86, Windows 10 x64/x86
Intel Core 2 Duo (Intel Core i3 or faster recommended)
4 GB RAM (8 GB or more recommended)

Mac and Windows Systems

USB 2.0 port
Internet connection
Internal or external 7200 RPM storage drive highly recommended
34 GB hard disk space
Monitor with 1366x768 resolution

iOS

iOS 9.3 or later
iPad Pro, iPad Air 2, iPad Air, iPad mini 4, iPad mini with Retina display, iPad (4th generation), iPad mini, iPad (3rd generation), iPad 2

Android (QMix-UC)

Android™ 5.0 (Lollipop) or later
Android smartphone (QMix-UC)
Android tablet (8-inch) with 1024x768 resolution (UC Surface)

Weitere Informationen: http://www.presonus.com/produkte/de/StudioLive-24R/
