dB Technologies ES-1203
Hersteller: dB Technologies
UVP 2225,00 CHF
1999,00 CHF
Produktbeschreibung

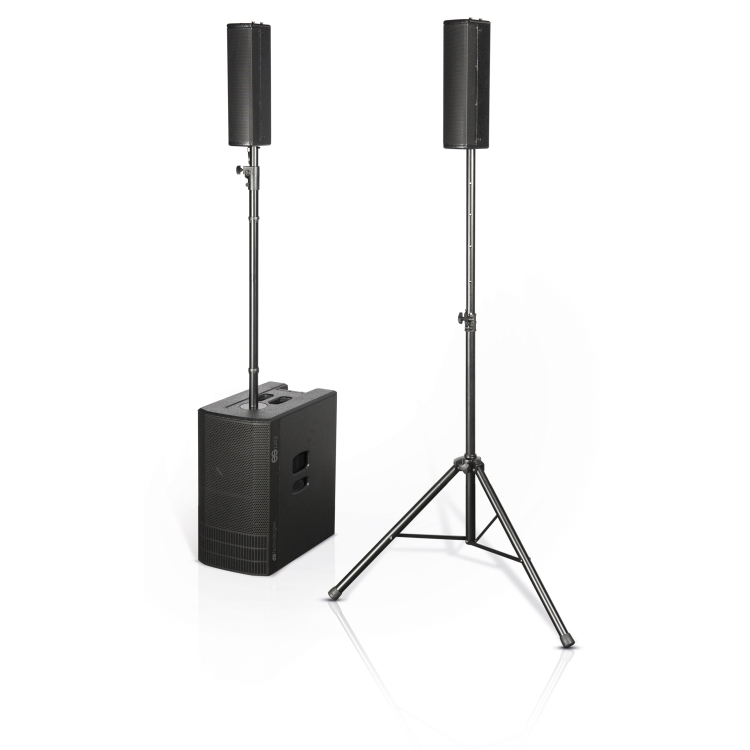

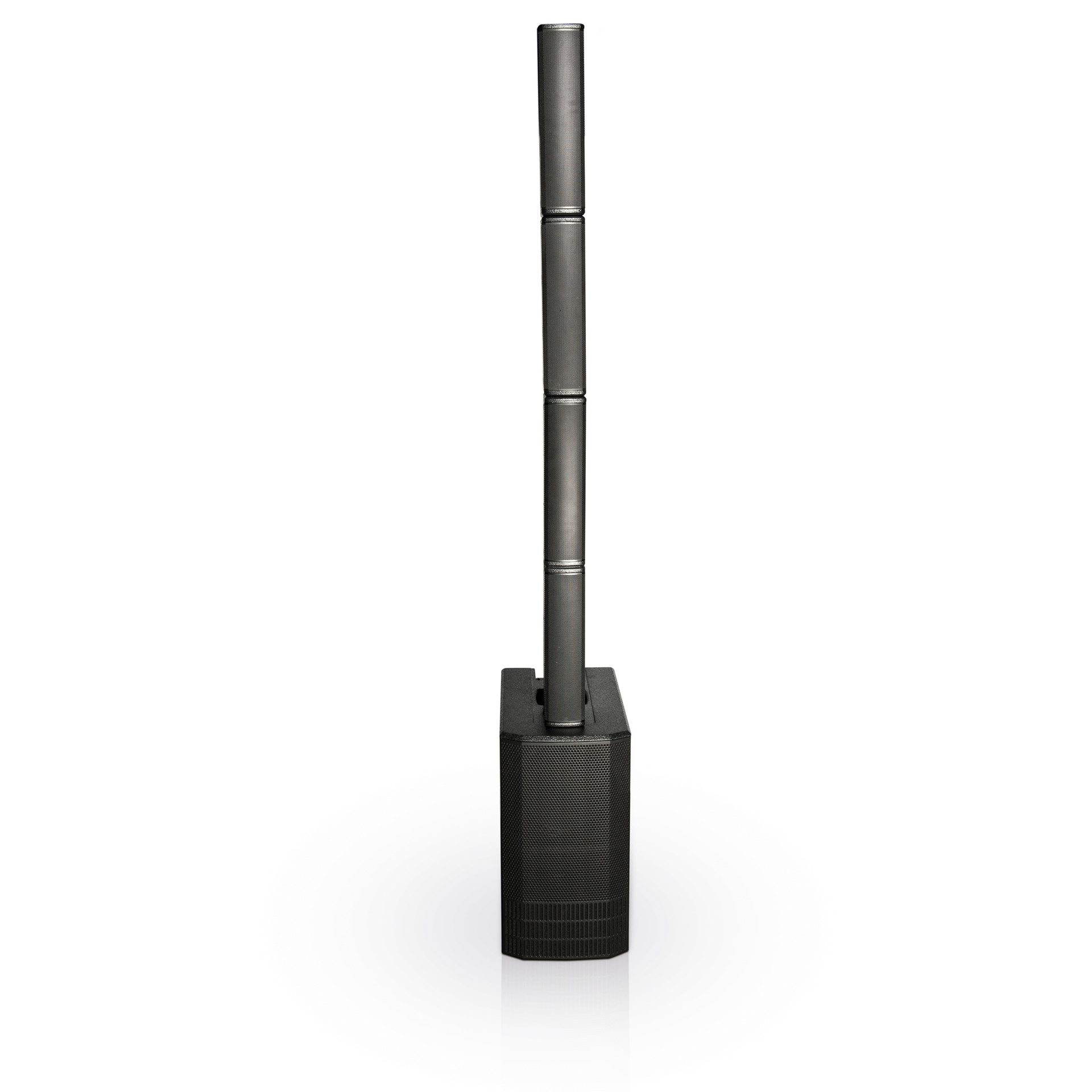

Active, 2x12", 8x4", Stereo-Säulensystem, 2400W
ES family grows stronger with ES 1203, a complete stereo sound system encompassing its predeccessors’ versatility with striking SPLs (the system features a 2400W last-generation power amp) and an impressively coherent throw pattern.
Technical Data
Speaker Type 3-amped Stereo System withtwo full-range tops and one subwoofer
Acoustical data
Frequency Response [-10dB] 35 - 20.000 Hz
Max SPL 132 dB
MF - HF 8x4", v.c. 1"
Type MF - HF Neodymium
LF 2X12"
Directivity 97x60°
Amplifier
Amp Technology Digipro® G4
Amp Class Class-D
Power Amp Peak 2400 W

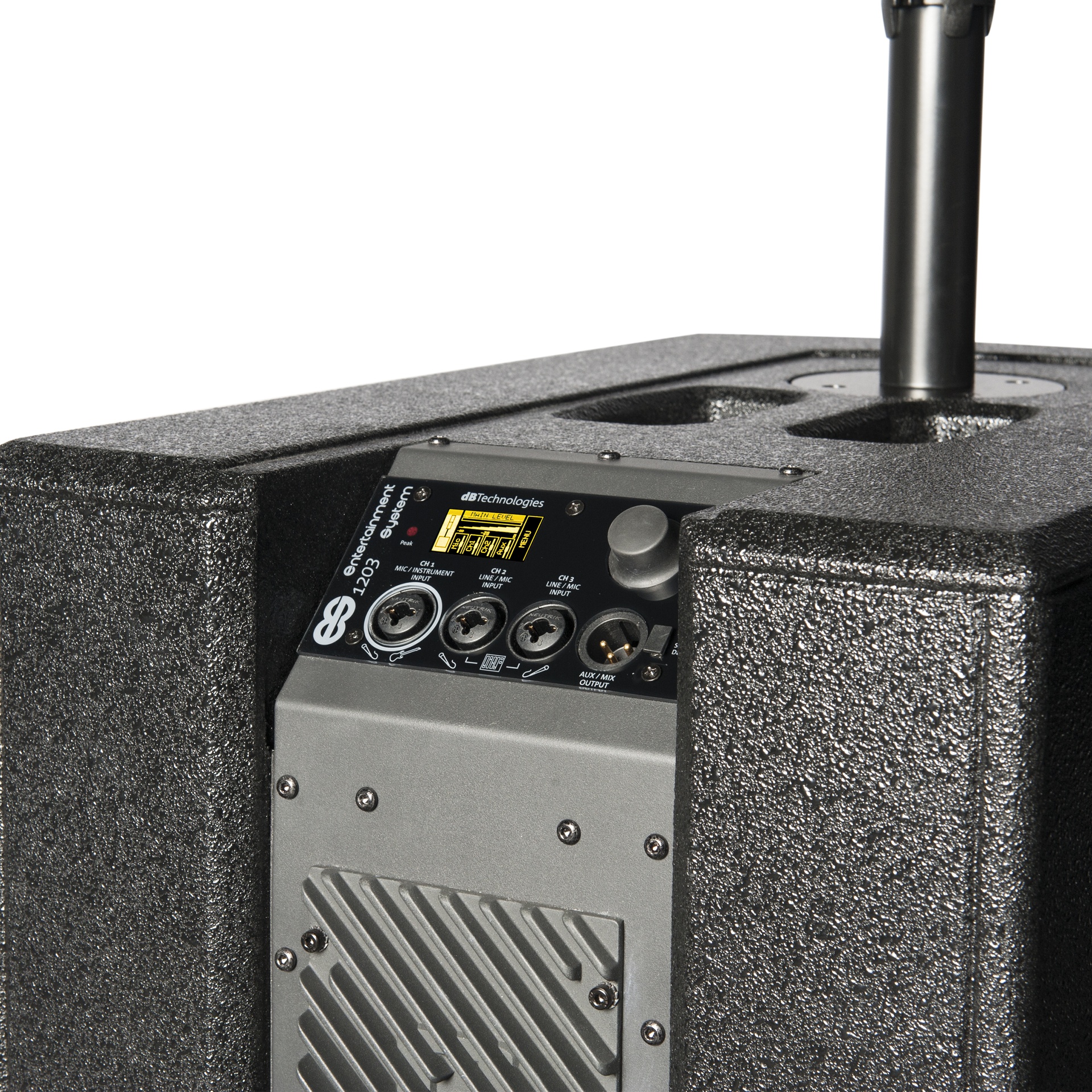

Controls 1xOLED Display with rotary encoder w/button 1x Audio signal monitoring LED1XUSB port (service data)
Power Supply Fullarange with PFC
Power connection VDE Socket
Cooling Convection
Processor
Controller DSP 56 Bit
Converter AD/DA 24 Bit/48 Hz
Limiter Peak, RMS, Thermal
Crossover Frequency LF-MF 160 Hz
Digital Steering Up/Down/Far
Input
Input Channels: 1x Mic/Instrument Combo (XLR/Jack)2xMic/Line Combo (XLR/Jack)1XBluetooth built-in receiver
Mix Output 1x XLR balanced output
Mechanics

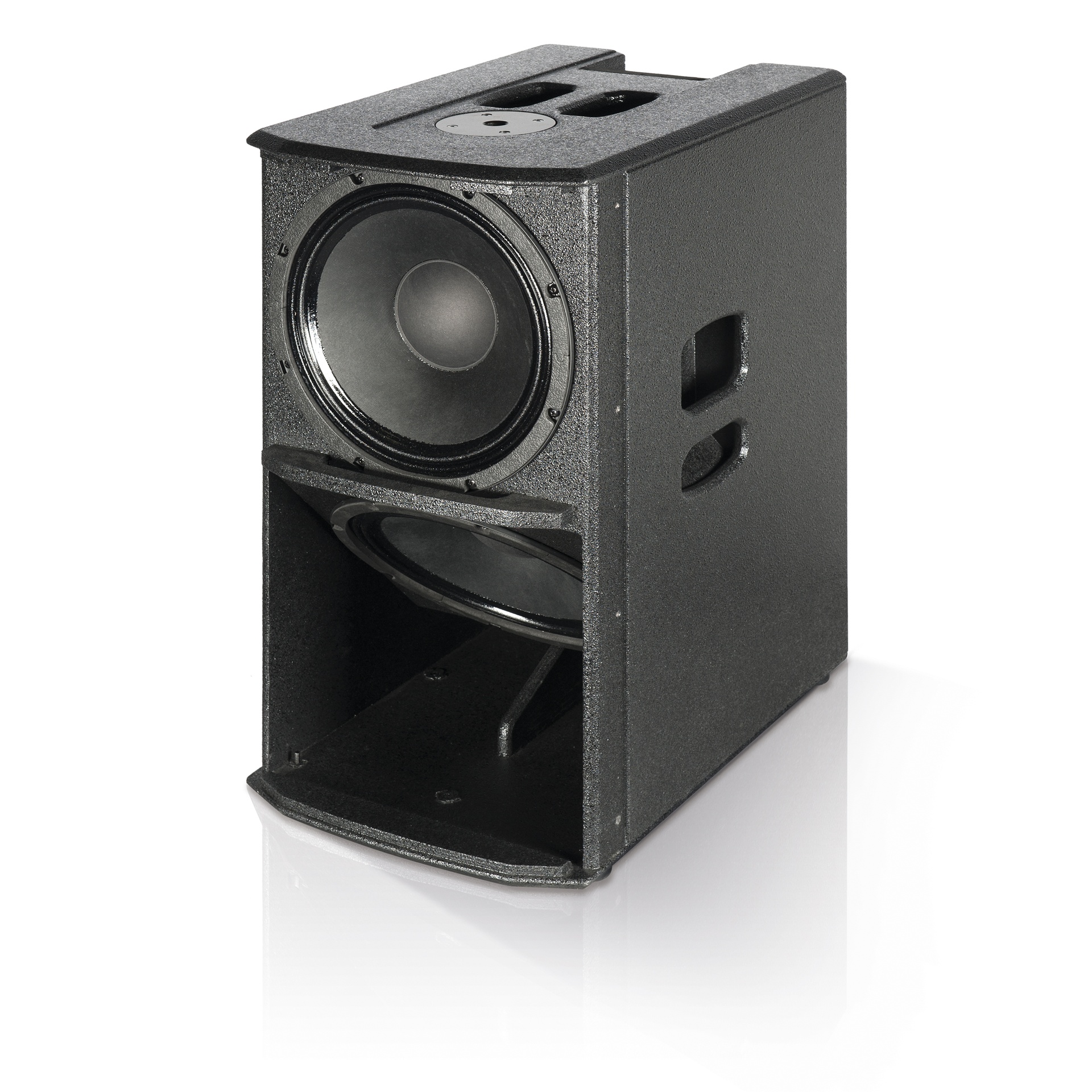

Housing (Subwoofer) Plywood with full metal grille

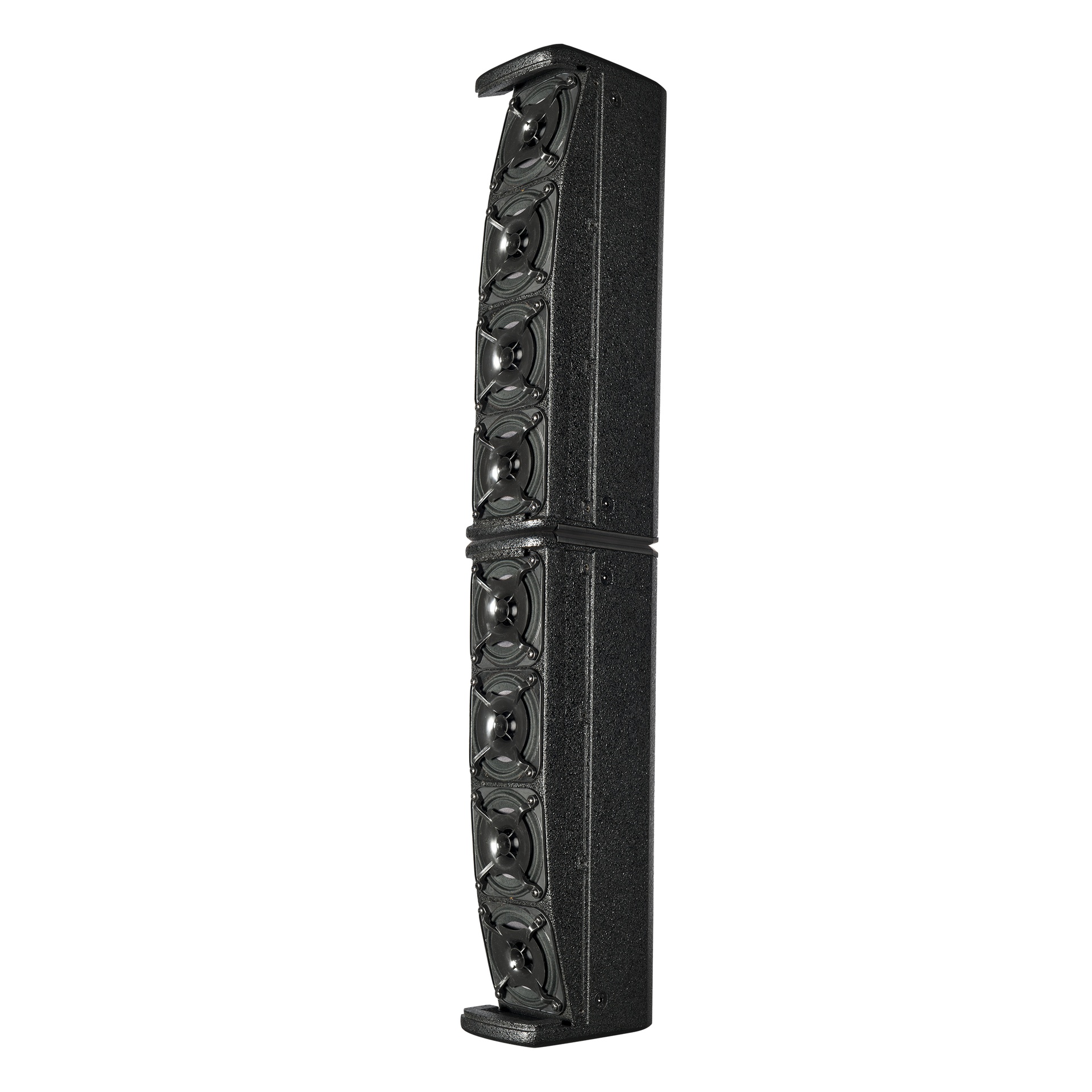

Housing (Tops) Plywood with full metal grille
Pole Mount 36 mm (M20 Thread)
Handles (subwoofer) 1xtop 1x lateral side
Width (Top) 110 mm
Height (Top) 460 mm
Depth (Top) 160 mm
Width (Subwoofer) 360 mm
Height (Subwoofer) 680 mm
Depth (Subwoofer) 545 mm
Weight (Top) 3.3 Kg
Weight (Subwoofer) 29.3 Kg
Spezifikationen
Farbe Schwarz oder Weiss
