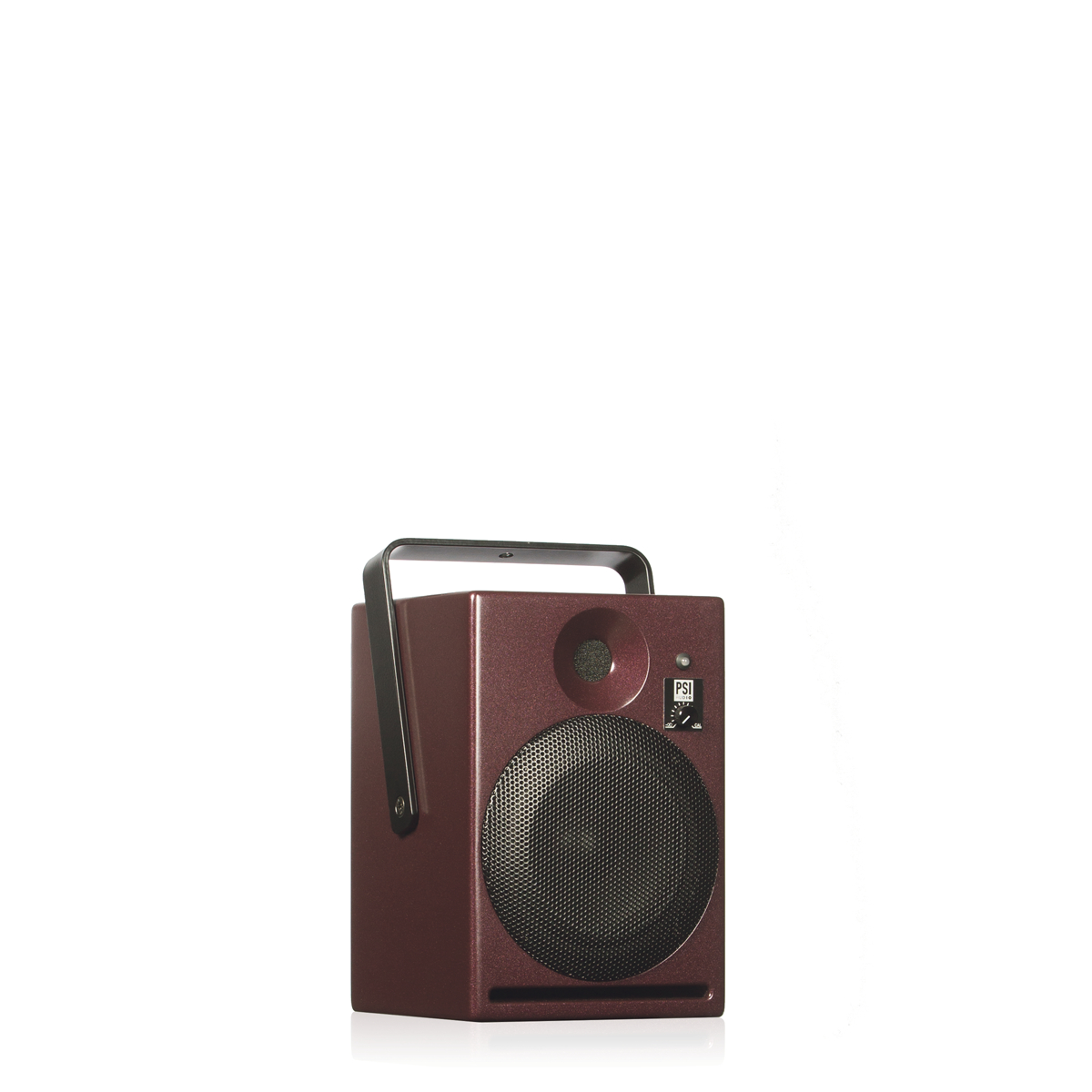

PSI AUDIO A14-Ms3 Broadcast - Studio Red (PaarPreis)
Hersteller: PSI AUDIO
UVP 2690,00 CHF
2560,00 CHF
Produktbeschreibung
With its improved performance and even greater fidelity, the new A14-M extends the PSI Audio product range of high-precision active monitor speakers.
The new model replaces the previously externally manufactured tweeter with a specially developed driver, which is manufactured entirely in PSI Audio’s own factory. While the A14-M was already popular with smaller studios and mobile applications, the new version surpasses it once again, especially when it comes to reproducing high frequencies.
Many producers and sound creators around the world appreciate the A14-M for its exceptional sound quality, especially considering the small speaker size. With a bass-midrange driver of only 147 mm diameter, the small reference monitor produces the precise sound image with an astonishingly deep bass that is typical for the company.
The A14-M s3 (also called v3) is available from now.
“The A14-M is in the best sense, an inconspicuous near field monitor. tonal balanced, high-resolution detail, very good transient response and accurate positioning accuracy turns out to be the Swiss army knife for the surround-Setup, small studio or OB van environment.” – Professional Audio Magazin, Germany
Product Description
The A14-M Broadcast full range speaker is the smallest member of the PSI Audio A-Series professional studio monitor range. Housed in an extremely compact cabinet, the A14-M Broadcast is designed to implement highest possible SPL and broad bandwidth. The A14-M Broadcast is ideal for studio application where the ultimate in precision and portability is required. Packed into its compact dimensions, is all the technology of its larger brothers. The powerful bi-amplified output features the unique “AOI” output stages, while the active crossover, with integrated “CPR”, delivers unprecedented impulse behavior with excellent stereo imaging. The crossover is also optimized for maximum phase coherence, projecting a wide horizontal and vertical ideal listening area. Designed to work in harmony with the full range of A series monitors the A14-M Broadcast also makes ideal rear speakers in a surround sound setup, or can be developed in to a more powerful system by adding the A225-M sub thus protecting your investment.
Product Key Features
Flat frequency response.
Optimised directivity by phase coherency.
Volume control on the front panel.
Metal handle for easy handling and for mic. stand or installation.
Protection circuits with overload indicator.
Real balanced input.
Designed for stereo and multichannel monitoring.
Magnetically shielded for use close to video monitors.
AOI Technology.
ALG Technology.
CPR Technology.
PSC Technology.
Product Data
Power RMS: 70 + 30W
Program Power: 100W
Input Impedance: Sym, 10k Ohms
Sensivity for 100 dB @ 1m: 0.775 V
Signal to Noise Ratio: 96 dBA
Continuous Max SPL@1m: 101 dB (single)
Input Overload: 24 Vpp
Program Max SPL@1m: 112 dB (pair)
Response at -6dB: 56 - 22000 Hz
Tolerances: ±2.5 dB (65Hz - 18kHz)
Distortion THD: less than 1.8% (95Hz-15kHz)
Phase tolerances: ±45° (260Hz - 16kHz)
Dispersion (P.N. 4 - 16 kHz) at -6 dB: 100° x 100° (H x V)
System: 2 Way(s)
Crossover frequency: 3.5 kHz
Woofer's dim. Ext. / Diaphragm: Ø147mm / Ø104mm
Tweeter's dim. Ext. / Diaphragm: Ø70mm / Ø24mm

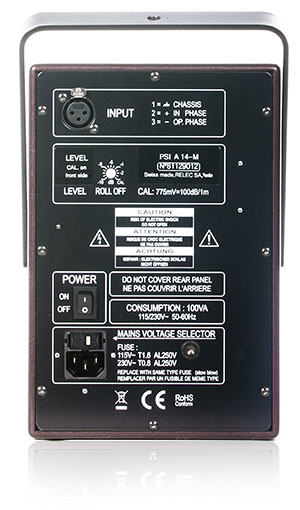

Connectors: 1 x XLR F / 3P
Signal input: 1=GND, 2=(+), 3=(-)
Material: MDF
Dimensions W x H x D mm: 163 x 243 x 170
Gross / Net Weight: 6.2 / 5.5 kg
Voltage: 115/230V (50-60Hz)
Consumption Standby-Quiescent-Max: 1.4 - 6 - 100W
Mean / Max Humidity: less than 75% / less than 90%
External Temperature: 5 - 40°C
SAE Studenten bitte EDU Konditionen anfragen, merci
Abholung im UP BEAT oder
Termin-Lieferung mit TNT (Palette) Empfänger muss zuhause sein, Preis bitte anfragen
Downloads
PSI_Audio_Brochure_2015.pdf (2.97 MB)
UserManual PSI_5_0.pdf (0.21 MB)
PSI_A17_MS1_techdata.pdf (0.09 MB)
