Moog System 55
Hersteller: Moog
Weitere Informationen:
http://www.moogmusic.com/products/modulars/system-55
INFORMATION

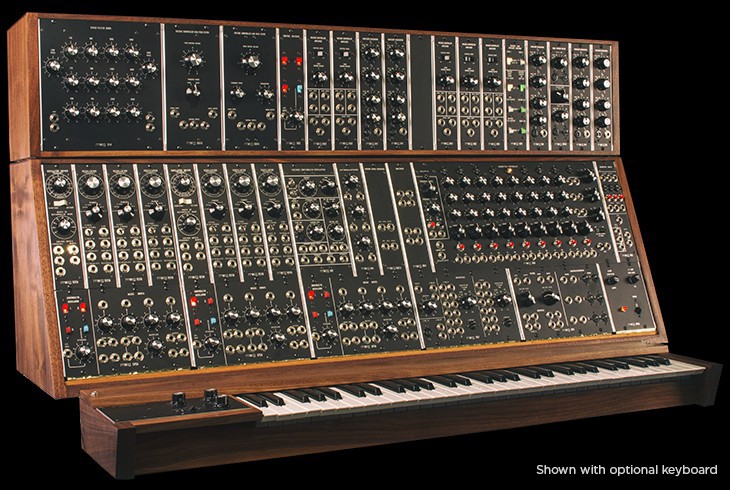

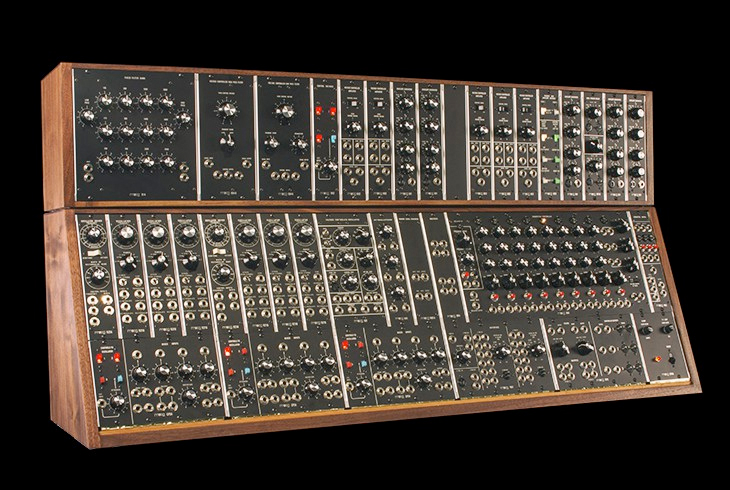

The Moog System 55 modular synthesizer
is a highly sophisticated and dynamic analog instrument comprised of 36 handcrafted modules and housed in
2 hand-finished solid walnut cabinets.
This instrument provides limitless sonic potential and inspiration, while delivering the depth and dimension of sound
found only in a vintage Moog modular synthesizer.
The System 55 comes equipped with the coveted 960 Sequential Controller for incorporating extensive
rhythmic complexity into the creative process
Faithfully Recreating The System 55
Three years of research and design has culminated in Moog Music recommencing the manufacturing of a limited number of Moog System 55 modular synthesizers.
Using all of the original documentation, as well as the original circuit board and art files, Moog engineers have hand-built true recreations of the original instruments based on their 1973 factory specifications.
Each individual module is hand-stuffed and the components are hand-soldered to circuit boards using traditional wiring methods.
Each module is then finished with a photo-etched aluminum panel, and placed in its new modular instrument.
This limited reissue of the Moog System 55 modular synthesizer is built to order. Only 55 total units will be made and sold worldwide.
(Street Price $35‘000 + MwSt + shipping)
System 55 Modules
5x 902 Voltage Controlled Amplifiers
1x 903A Random Signal Generator
1x 904A Voltage Controlled Low Pass Filter
1x 904B Voltage Controlled High Pass Filter
5x 911 Envelope Generators
1x 911A Dual Trigger Delay
1x 914 Fixed Filter Bank
1x 921 Voltage Controlled Oscillator
2x 921A Oscillator Drivers
6x 921B Oscillators
1x 960 Sequential Controller
1x 961 Interface
1x 962 Sequential Switch
1x 992 Control Voltage Panel
1x 993 Trigger and Envelope Voltages Panel
1x 994 Dual Multiples Panel
1x 995 Attenuator
1x CP2 Console Panel
3x CP3A Console Panels
1x CP8 Console Panel
1x 350 Watt 120 VAC or 230 VAC Switch Selectable Power Supply
Weitere Informationen: http://www.moogmusic.com/products/modulars/system-55
Downloads
Moog_System_55_Brochure.pdf (1.41 MB)
