Sequential PRO 3

A Three-Generation Legacy

The Sequential Pro 1 and Pro 2 mono synths achieved nearly legendary status in their time. So it was only natural that we build on their strengths with an even more worthy successor. Enter the Pro 3, Sequential’s 2-VCO + wavetable mono/paraphonic synth — a new benchmark for raw sonic power and unrivalled versatility.

The Power of 3

The Pro 3 boasts three oscillators, three vintage filters, three LFOs, four loopable envelopes, a massive 32-slot mod matrix, and a 16 x 16 x 4 sequencer. Throw in dual digital effects and four control voltage ins and outs, and you’ve got a hugely powerful instrument that’s as exciting to program as it is to play.

A Next-Generation Classic

The Pro 3 is a hybrid of solid, old-school analog synthesis paired with versatile digital technology. Its two voltage controlled oscillators provide warmth and presence while its third wavetable oscillator provides digital edge and grit. With 32 tables of 16 waves each and wave morphing, tonal possibilities are immense. Tuned feedback with grunge, and analog distortion deliver industrial-grade nastiness on demand.

Three Filters Based on Vintage Designs

At the heart of the Pro 3’s ballsy sound are its vintage-style filters. Filter 1 is a 4-pole low-pass design based on the Prophet-6 filter. Filter 2 is a classic transistor ladder filter with optional resonance compensation to preserve its low-end punch. Filter 3 is a classic 2-pole, state-variable design based on the OB-6 filter that can be continuously varied between low-pass, notch, and high-pass operation, with an optional band-pass mode. An additional Drive control provides still more punch when you really want to get down and dirty.


Expressive Sequencing

Possibly the Pro 3’s most powerful performance tool is its sequencer. With 16 tracks, 16 steps, and 4 phrases, it features both real-time and step input, ratcheting, variable gate and sequence lengths, multiple playback modes, and paraphonic operation. It also syncs to MIDI clock and external audio input, and inputs/outputs control voltages. In addition to notes, sequence tracks can control any parameter in the 171-destination modulation matrix.


Plays Well with Modulars

The Pro 3’s flexible architecture opens the door to not only processing external audio, but also to interfacing with modular synths through its 4 rear-panel control voltage inputs/outputs and a dedicated gate output. Control voltages can be assigned and routed from within the modulation matrix and can run at audio rates for extreme modulation effects. Some of the many parameters that can be sent to the CV outputs include oscillators, LFOs, envelopes, and sequencer tracks, allowing the Pro 3 to become the central hub of a modular or multi-synth setup.

Effects, Envelopes, LFOs, an Arpeggiator, and Extreme Modulation

The Pro 3’s Effects section provides delays, reverbs, time-domain effects such as chorus/phasing/flanging and more. There are four loopable five-stage envelope generators, three syncable LFOs with slew and phase offset, a full-featured arpeggiator, and a 32-slot modulation matrix with dozens of modulation sources and over a hundred destinations.

Monophonic and Paraphonic Operation

The Pro 3 was designed to be a super-powerful monosynth, but it is also a versatile 3-voice paraphonic synth. This makes playing 3-note chords not only possible, but with creative use of effects and some per-oscillator modulation, very expressive.

Put all of this sonic power in a three-octave, semi-weighted keyboard with velocity and channel aftertouch, add backlit pitch and mod wheels and a location-sensitive touch slider, and you’ve got one of the most inspiring synths ever made.

PRO 3 SPECIFICATIONS

3 OSCILLATORS

    Two analog, voltage-controlled oscillators
    One DSP-based digital oscillator
    Analog oscillators produce three classic wave shapes: (triangle, saw, pulse) with variable shape modulation/pulse width on each
    Digital oscillator produce 32 digital wavetables of 16 waves each with wave morphing, plus classic wave shapes (sine, triangle, saw, variable-width pulse) and super saw
    Digital oscillator 3 can function as an LFO for complex wavetable-based modulation
    White noise generator
    Hard sync, per-oscillator Glide, Oscillator Slop

3-Voice PARAPHONIC PLAYABILITY

    3-voice paraphonic mode with individually-gated envelopes per oscillator

3 FILTERS

    Three classic filter types
    Filter 1 is a 4-pole, 24 dB per-octave, Prophet-6™ low-pass filter
    Filter 2 is a classic, 4-pole, 24 dB per-octave, transistor ladder filter with optional resonance compensation
    Filter 3 is a 2-pole, 12 db per-octave, OB-6™ state-variable filter. It can be continuously varied between low-pass, notch, and high-pass operation, with an optional band-pass mode.

3 LFOS

    Three syncable LFOs with phase offset and slew per LFO
    Five waveshapes: triangle, saw, reverse saw, square, and S&H

4 ENVELOPES

    Four ADSR envelopes with delay (Filter, VCA, and two Auxiliary envelopes)
    Envelopes freely assignable to multiple modulation destinations
    All envelopes can repeat/loop

DIGITAL EFFECTS

    Dual digital effects
    Stereo delay, BBD delay, chorus, flanger, phaser, ring mod, vintage rotating speaker, distortion, high-pass filter, super plate reverb

FEEDBACK AND DISTORTION

    Tuned feedback with Grunge for extra-aggressive tonal destruction
    Programmable analog distortion

32-Slot MODULATION MATRIX

    32 slot modulation matrix with over 46 mod sources and over 171 mod destinations
    Modulation assignment buttons enable quick and easy modulation routing
    Mod Matrix runs at audio rates

4 CONTROL VOLTAGE INS & OUTS AND GATE OUT

    Four control voltage (CV) inputs and outputs for interfacing with modular synths and other CV-compatible devices
    Parameters that can be sent to CV outputs include oscillators, LFOs, envelopes, sequencer tracks and any other source within the modulation matrix. Runs at audio rates.
    Gate Out for triggering external CV-compatible devices. Any CV in can be used as a gate input.

16-track SEQUENCER

    Advanced sequencer with three modes: normal, gated, and trigger
    16 tracks and 4 linkable 16-step phrases
    Per-step ratcheting, duration, and velocity
    Multiple playback modes: forward, reverse, forward/reverse, random
    Supports real-time/step input, rests, and variable-length sequences
    Syncs to MIDI clock and external audio and CV input
    Sequences freely assignable to any modulation destination

ARPEGGIATOR

    Sophisticated arpeggiator with up, down, up+down, random, assign modes
    Syncs to MIDI clock and external audio and CV inputs
    Re-latching arpeggiation
    Runs concurrent with Sequencer for arpeggiated patterns with parameter automation

CONTROLS

    Over 60 knobs and 70 buttons enable deep, comprehensive editing with minimal menu diving

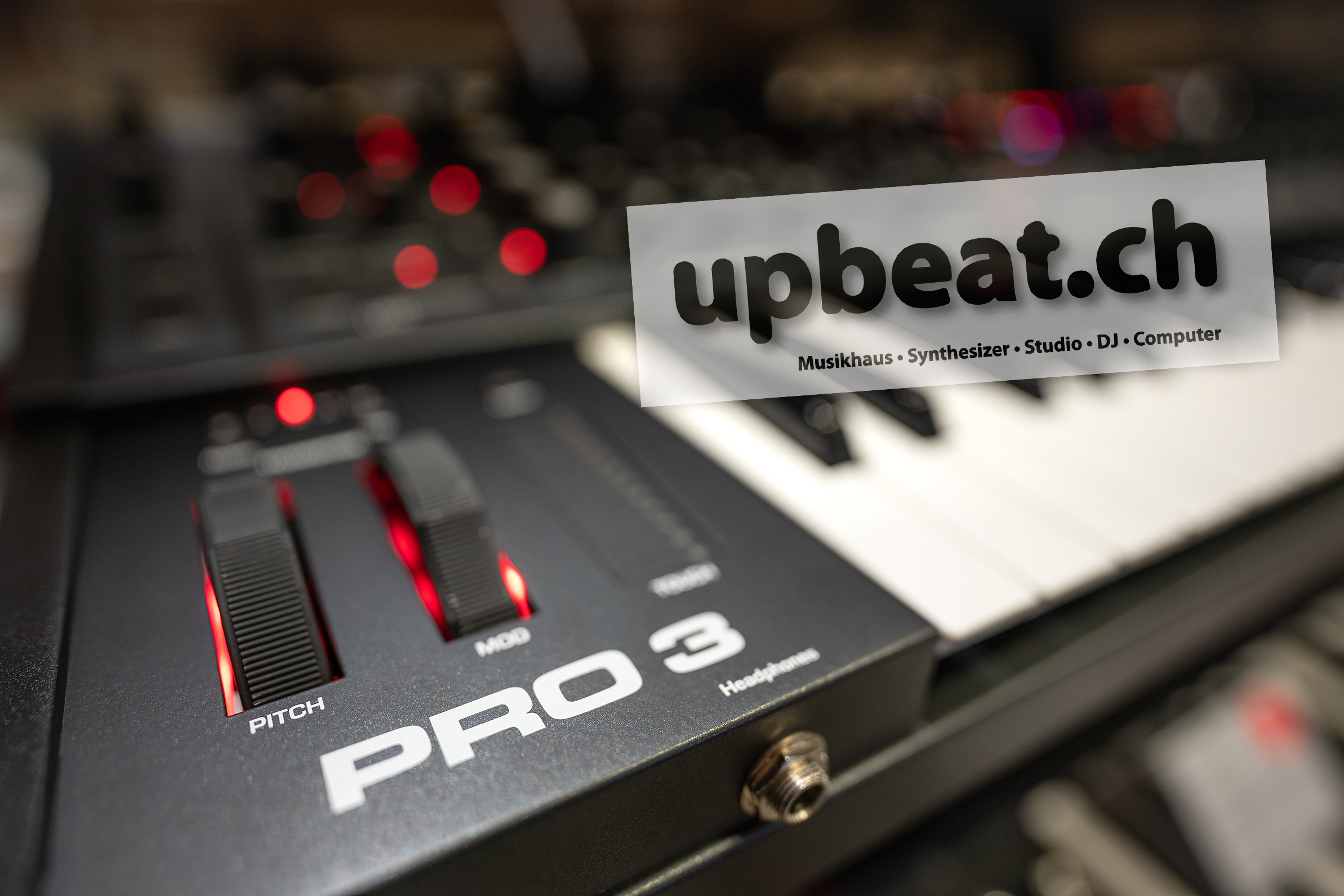

    Backlit pitch and mod wheels are easily visible in low-light situations and have a smooth, precise response.
    Independently adjustable upper and lower pitch wheel range
    Position-sensitive latchable touch slider for enhanced interactivity and control
    Full-sized, three-octave, semi-weighted keyboard with velocity and aftertouch

MEMORY

    512 user and 512 factory programs
    Playlist mode for generating easily accessible set lists of your favorite programs

IN/OUT

    1 MIDI In, 1 MIDI Out, and 1 MIDI Thru/Out 2 port
    USB port for bidirectional MIDI communication
    4 CV inputs (4 x 1/8″ jack) with -10v to +10v voltage range
    4 CV outputs (4 x 1/8″ jack) with -10v to +10v voltage range
    1 Gate Out  (1/8″ jack)
    1 Sustain/footswitch input
    1 Expression pedal input
    1 External audio input  (1/4″ phone jack)
    Main stereo output (2 x 1/4″ phone jack)
    Headphone out (stereo 1/4″ phone jack)

POWER

    1 universal IEC AC power inlet for internal power supply
    Operates worldwide on voltages between 100-240v, 50-60Hz, 30 watts maximum power consumption

PHYSICAL SPECS

    Premium, 3-octave, semi-weighted Fatar keyboard
    26.5″ L x 13″ W x 3.5″ H (67.3 cm x 33 cm x 8.9 cm)
    Weight:  7.25 kg
