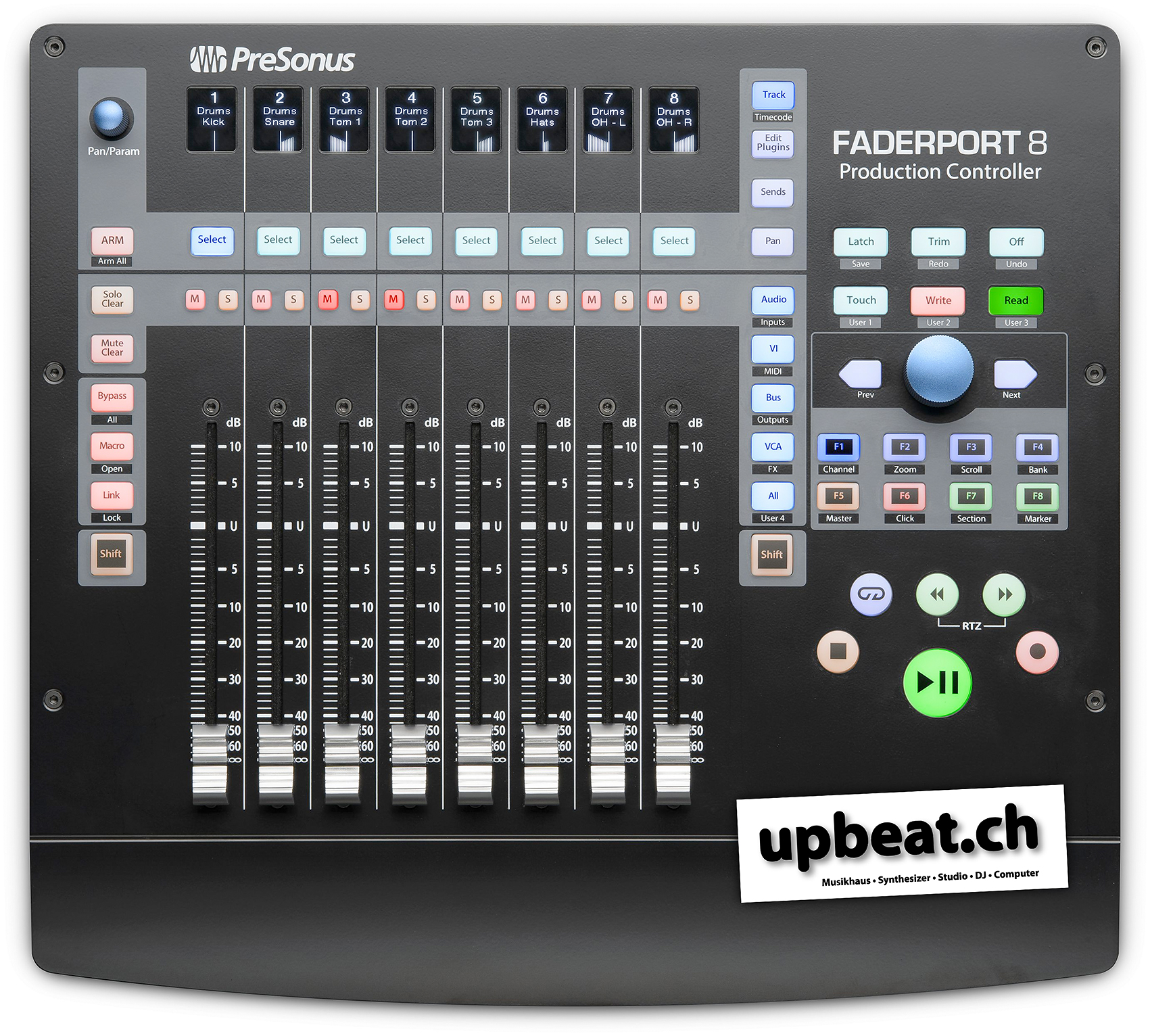

Presonus Faderport 8

an Lager (25.9.2024)


Don’t kill that mouse—give it a companion.

Although a keyboard and mouse are tried-and-true DAW-control devices, they’re far more effective when used in tandem with the FaderPort™ 8’s precise tactile control over mix and automation functions. With 8 touch-sensitive, motorized, 100 mm faders and 57 buttons covering 78 different functions, you can quickly zoom in on audio files for editing, adjust your click-track tempo with a simple tap, modify plug-in parameters, manage aux mixes—and, of course, control track levels with the touch of a finger. With the FaderPort 8, you’ll enjoy the fastest, most efficient workflow you’ve ever experienced.

Work faster and smarter.

Rather than forcing you to revise your mixing method, the FaderPort 8 augments the way you currently mix. You still use your faithful keyboard and mouse for things they do well, and the FaderPort 8 handles the features you want to get your fingers on, allowing you to customize your workflow. Large, illuminated buttons make finding the function you need quick and easy. Eight high-definition digital scribble strips provide visual feedback. And if you select a track with your mouse, the FaderPort 8 will follow your selection, giving you yet another way to get to the function you need, right when you need it. This is DAW control the way you always hoped it could be!

Universal compatibility and tight Studio One® integration.

FaderPort 8’s streamlined workflow and support for the Mackie Control and HUI protocols make it fast and easy to control virtually any DAW. No driver installation is necessary; just plug the control surface into a USB port and take command of your mix and plug-ins.

But the FaderPort 8 is downright magical when used with PreSonus Studio One. (Studio One Artist is included.) You’ll be amazed how much faster you can work.

Aufnahmesoftware der Spitzenklasse im Lieferumfang. (Presonus Studio ONE Artist)

An amazingly fast, efficient studio workflow awaits you!

With the compact, easy-to-use FaderPort 8, you’ll enjoy the fastest, most efficient workflow you’ve ever experienced. But don’t just take our word for it; visit your favorite PreSonus dealer and try the FaderPort 8 for yourself!

Computer system requirements:

Below are the minimum computer-system requirements for the FaderPort™ 8:
Mac®

macOS® 10.8.5 or higher
Intel® Core™ 2 Duo processor (Intel Core i3 or better recommended)

Windows®

Windows 10 x64/x86, Windows 8.1 x64/x86, Windows 7 x64/x86 SP1 + platform update
Intel Core 2 Duo or AMD® Athlon™ X2 processor (Intel Core i3 or better recommended)

Windows and Mac Systems

USB 2.0 port
Internet connection required for driver and bundled software installation

PreSonus FaderPort 8 has been tested and approved to work with the following software:

Native Mode
PreSonus® Studio One® 3
HUI Emulation
Supported by Pro Tools
Mackie Universal Control Emulation
Supported by Logic, Cubase, Ableton, Nuendo, Bitwig, Reaper, Digital Performer, and more

As a commitment to constant improvement, PreSonus Audio Electronics, Inc., reserves the right to change any specification stated herein, at any time, without notification.​​
Technical Specifications

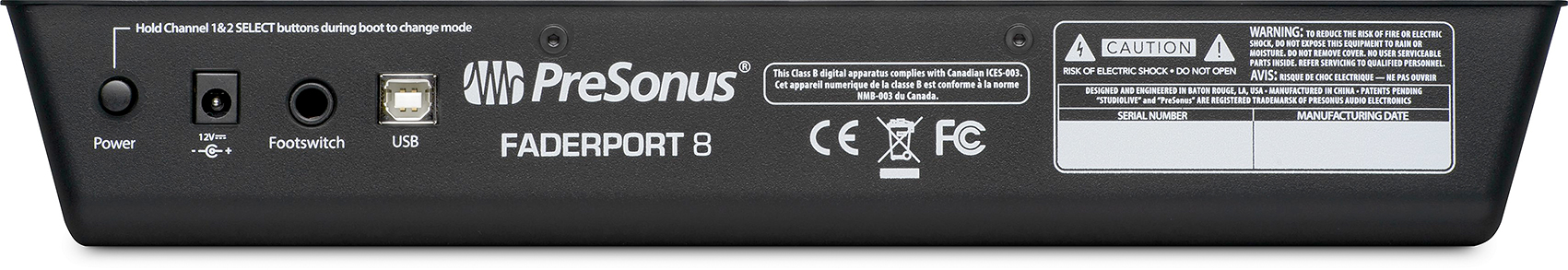

Input / Output

1 USB 2.0 port
1 Footswitch jack for hands-free stop/start
Faders

8 x 100 mm long-throw, touch-sensitive, motorized faders
Dual-servo motorized drive belt system for fast and quiet operation
Ultra-smooth feel and lightning fast
Heavy-duty construction
Resolution: 10-bit, 1,024 steps
Buttons and Knobs

General Controls Undo/Redo, Arm All, Solo/Mute Clear, Timecode, Click On/Off with Tap Tempo, 4 programmable User buttons, 8 Function buttons, Macro, Parameter Link, Bypass Plug-ins
Channel Controls Level, Pan, Solo, Mute, Select, Rec Arm
Automation Controls Touch, Latch, Trim, Write, Read, Off
Optional Fader Functionality Plug-in Edit, Bus Sends, Pan
Window View Mix, Project, Transport, Undo
Transport Play, Stop, Fast Forward, Rewind, Record, Loop, Return to Zero (Functionality varies slightly depending on the DAW.)
Navigation Track Scroll, Channel Banking, Timeline Scroll, Horizontal Zoom, Vertical Zoom, Drop Marker, Next/Prev Marker, Next / Prev Event, Nudge
Console Management Show/Hide: Audio Track, Inputs, MIDI Tracks, Buses, Outputs, VCA, FX; Show All
Displays 8 high-definition digital scribble strip displays, timecode display, channel meters
Power

12 VDC, 2A external power supply

- 8 touch-sensitive, 100 mm long-throw, motorized faders
- 8 high-definition Scribble Strip displays
- Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop
- Drop Marker, Next/Prev Marker, Next / Prev Event
- General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Track Management, Click On/Off with tap tempo
- Session Navigator provides quick control over track scrolling, channel banking, timeline scrolling, and much more
- Channel Controls: Level, Pan, Solo, Mute, Rec Arm
- Automation Controls: Touch, Latch, Trim, Write, Read, Off
- Optional Fader functionality: plug-in edit, bus sends, pan
- macOS® / Windows® compatible with native Studio One® support and HUI and Mackie Control Universal emulation
- Footswitch input for hands-free start/stop
- USB 2.0 connectivity

! Supported with Universal Control 3.4.2 with Apple Silicon Macs running macOS 11 (Big Sur) !

Weitere Informationen: http://www.presonus.com/products/FaderPort-8
