Studiologic Mixface

SL MIXFACE - freedom to connect. total control.

The SL MIXFACE is a complete controller device which combines style and simplicity with a powerful engine. Designed for mobility, you can bring it everywhere and use it in total freedom thanks to its hosting capability and auto-mapping of the main DAW apps.

Through its connectivity and the integrated batteries it's a perfect portable device, which with a simple gesture becomes the best desk companion.

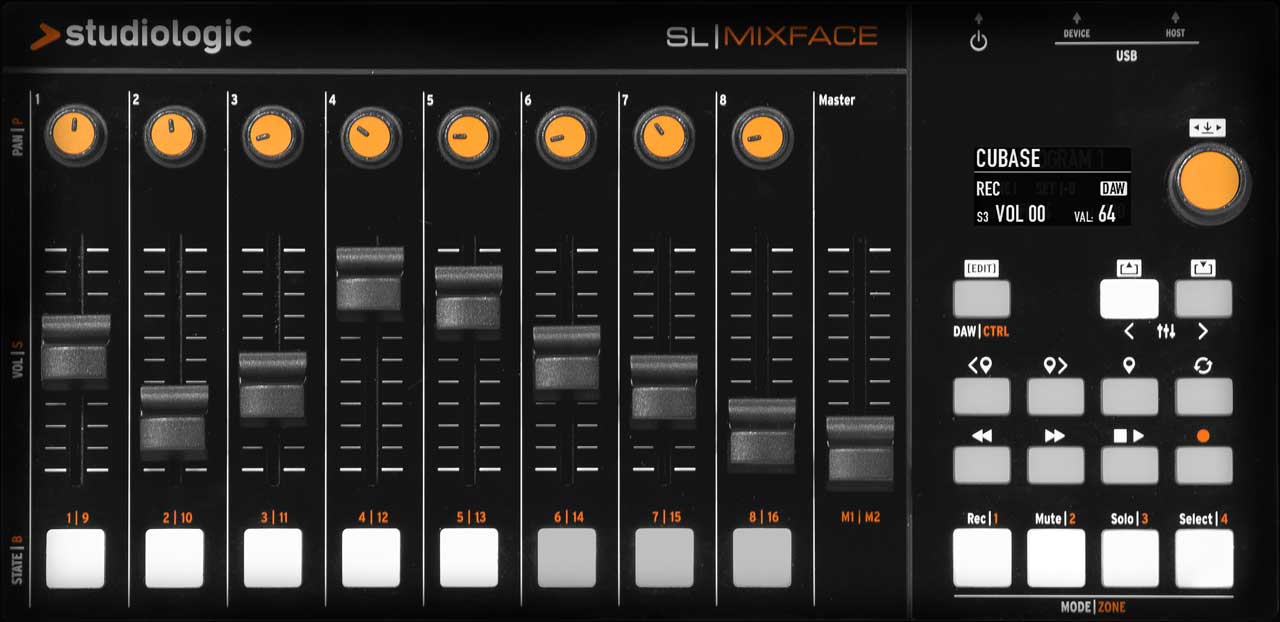

Press a button and switch the control from the DAW environment to your favorite instrument and viceversa. All the Transport functions are always ready to go, while you can edit any sound parameter of the instrument or mix the tracks of your song.

Connectivity

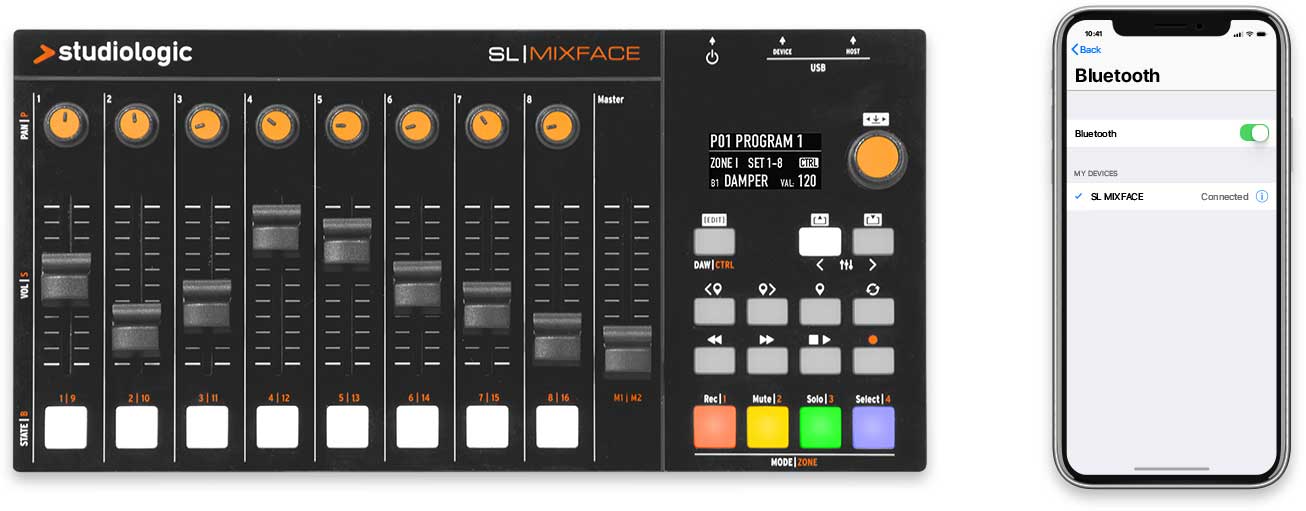

The SL MIXFACE is able to host any keyboard turning it into a full 4 layers MIDI controller. Thanks to its connectivity ports it communicates with the computer as device by using Bluethooth and USB at the same time.

Extended capability

The SL MIXFACE perfectly matches the SL controller line expanding its control capability. Thanks to the magnetic system it sticks on it becoming a natural physical controls extention. Simply plug MIXFACE to an SL keyboard and it gets the control of the 4 layers on the fly.

Specifications:

General

OLED display 128 x 64 dots
Navigation Encoder
8 Knobs, 9 Slider, 8 Buttons

DAW

Rec, Mute, Solo, Select
3 Controls for each Track (Knob, Slider, Button)
Master Slider

Transport
Play/Stop, Record, Next track, Previous Track
Set marker, Next marker, Previous marker, Cycle

Supporter DAWs
Ableton Live, Steinberg Cubase, Motu Digital Performer, Presonus Studio One

Controller

12 User Presets
Integration with SL Controllers
4 Zones

Controls for Zone
16 Sets (Knob + Slider + Button)
2 Master Sliders

Connections

Micro USB (Device)
USB Host
Bluetooth 4.2 Low Energy

Power and battery

USB powered (when conected via USB)
Three AAA batteries (when connected wirelessly)

Battery life
Up to 4 hours

Size and Weight

Width: 26,2 cm / 10,3"
Depth: 13 cm / 5,1"
Height: 3,6 cm / 1,4" - 5,6 cm / 2,2" raised
Weight: 570 g / 1,25 lbs (without batteries)

Package content

SL Mixface
Power adapter
CD Manual
